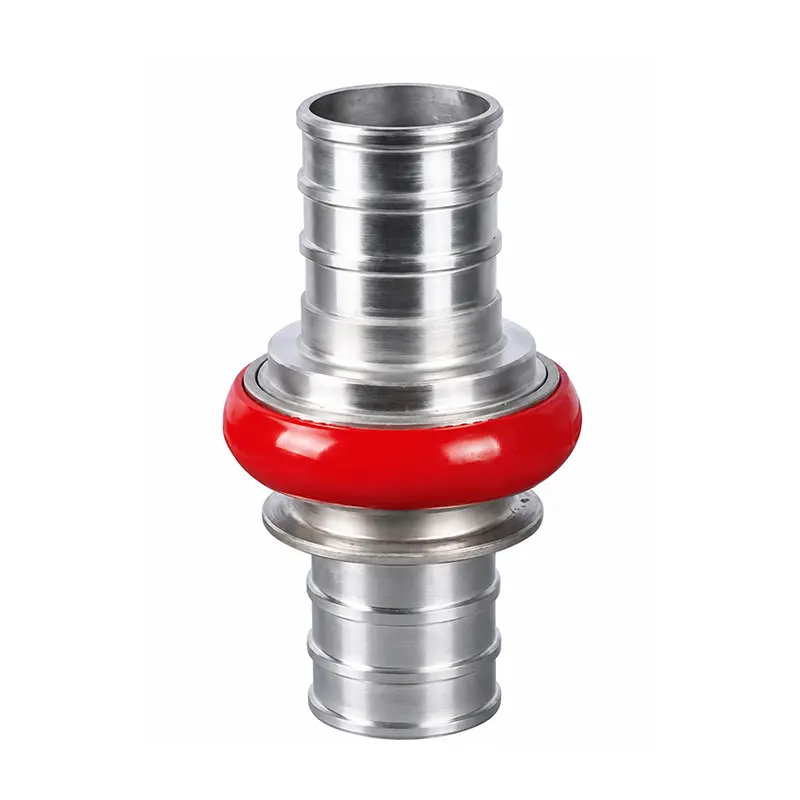

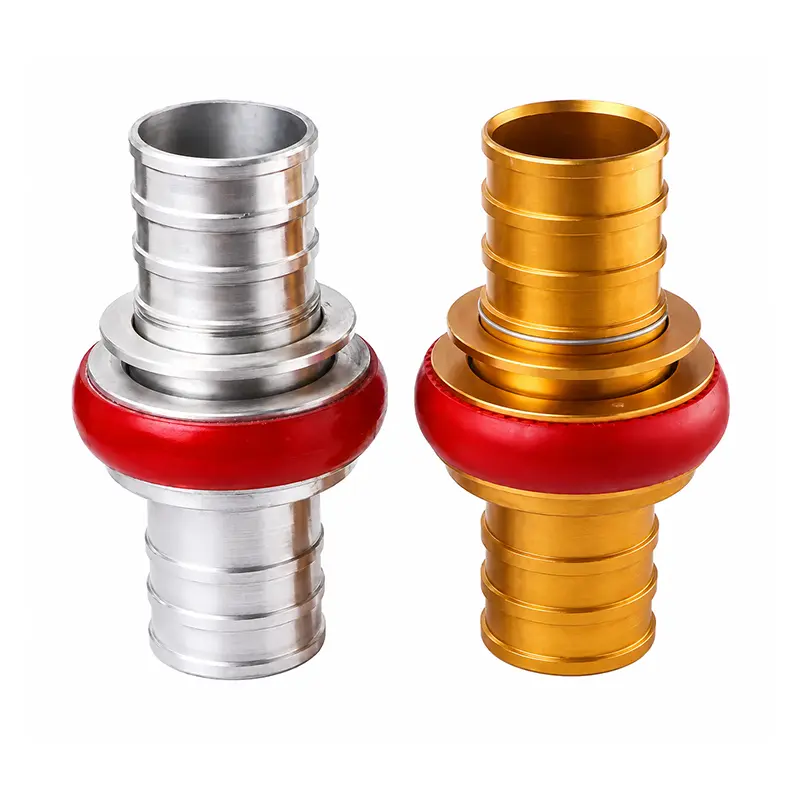

JIS Machino Coupling

The FUXEON® JIS Machino Coupling is a quick-connect component designed for connecting fire hoses, fire trucks, landing valves, fire hydrants, and nozzles. It uses an internal slider and slot-locking structure to provide a fast connection without the multiple rotations required by conventional threaded interfaces.

    The JIS Machino Coupling is commonly supplied in DN40, DN50, and DN65 sizes, with additional sizes available according to project requirements. Its push-type connection allows operators to connect and disconnect fire hoses quickly, which is particularly useful during firefighting operations where connection time is critical.

    FUXEON® products are manufactured under certified management systems including GB/T 19001-2016 / ISO 9001:2015, GB/T 24001-2016 / ISO 14001:2015, GB/T 45001-2020 / ISO 45001:2018, and GB/T 27922-2011. View our certifications.

    Connection Structure & Mechanism

    The machino fire hose coupling uses a precision internal spring to push a slider into the mating slot after the male and female components are connected. This mechanical locking structure secures the joint during operation, while a premium rubber sealing ring provides a leak-proof seal between the connected components.

    1

    Insert Male End

    The operator inserts the male end into the matching female connection (such as a fire hydrant or fire nozzle) until the locking mechanism securely engages.

    2

    Auto-Lock & Seal

    The internal spring-loaded slider locks into the slot. The multi-stage anti-slip structure maintains proper engagement, and the rubber ring ensures a tight seal.

    3

    Quick Disconnect

    To disconnect, simply press the ring mechanism on the male side to retract the internal slider. The connection separates instantly without rotating any threaded interface.

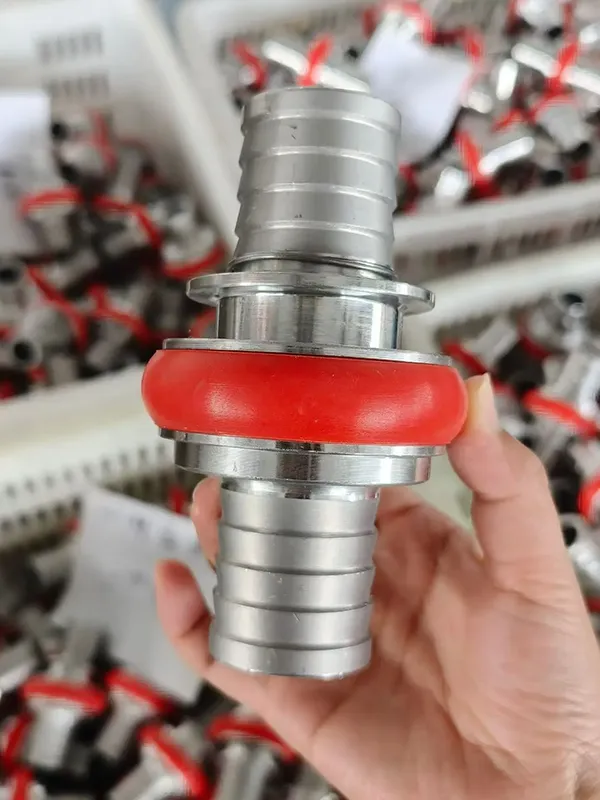

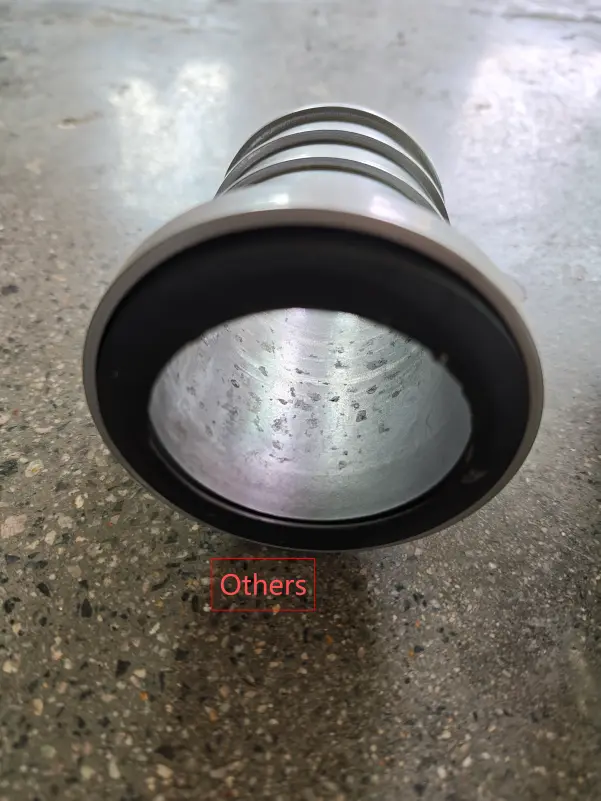

    JIS Machino Coupling Structure


    Machino Coupling Quick Connection


    Technical Data

    Parameter Specification
    Standard JIS B 9911
    Size 1 1/2", 2", 2.5", 3"; other sizes available on request
    Common Nominal Sizes DN40, DN50, DN65
    Working Pressure 16 bar
    Working Medium Water, Foam Mixture
    Material Brass, Aluminum, Stainless Steel
    Sealing Ring Rubber
    Casting Method Die Casting, Gravity Casting, Forging
    Surface Treatment Vibratory Grinding, Anodizing
    Connection Type Quick Push-Type Connection

    Material Selection Guide

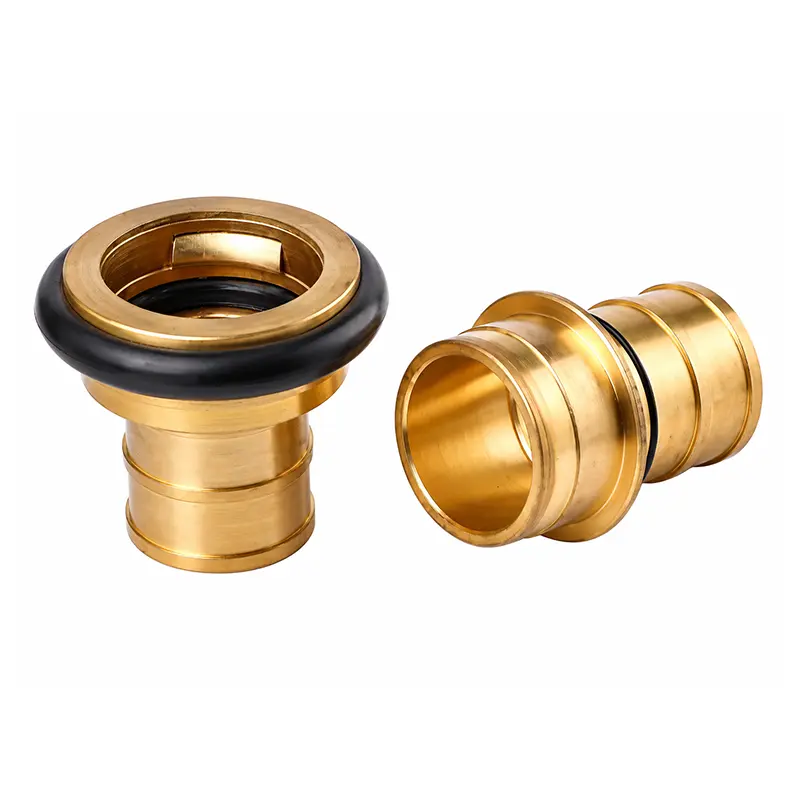

    FUXEON® JIS Machino Coupling is available in brass, aluminum, and stainless steel. Material selection affects connector weight, mechanical strength, corrosion resistance, service environment, and procurement cost.

    Brass
    • Typical Density ~8.4–8.7 g/cm³
    • Tensile Strength ~300–550 MPa
    • Weight Heavy
    • Corrosion Res. Good
    • Cost Medium–High
    • Application General firefighting
    Aluminum Alloy
    • Typical Density ~2.7–2.8 g/cm³
    • Tensile Strength ~150–310 MPa
    • Weight Lightweight
    • Corrosion Res. Good
    • Cost Medium
    • Application Portable equipment
    Stainless Steel
    • Typical Density ~7.9–8.0 g/cm³
    • Tensile Strength ~500–600 MPa
    • Weight Heavy
    • Corrosion Res. Excellent
    • Cost High
    • Application Corrosive environments

    Manufacturing & Quality Verification

    FUXEON® operates its own fire hose connector manufacturing plant, allowing production schedules to be adjusted according to order requirements without relying on agents or distributors. The manufacturing process supports die casting, gravity casting, and forging, allowing different materials, sizes, and structural configurations to be produced according to application requirements.

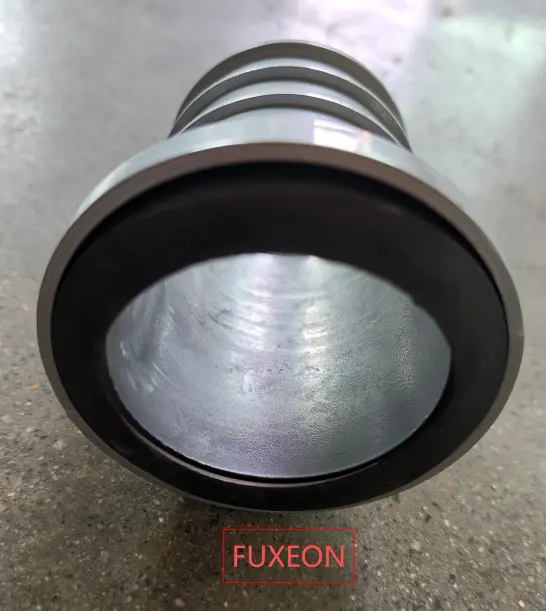

    The inner walls of FUXEON® fire hose connectors are processed to provide a smooth internal surface. Proper surface finishing helps reduce rough areas that may retain contaminants or create localized corrosion points. For customized projects, FUXEON® supports OEM/ODM services for special sizes and non-standard structures according to customer drawings or technical requirements.

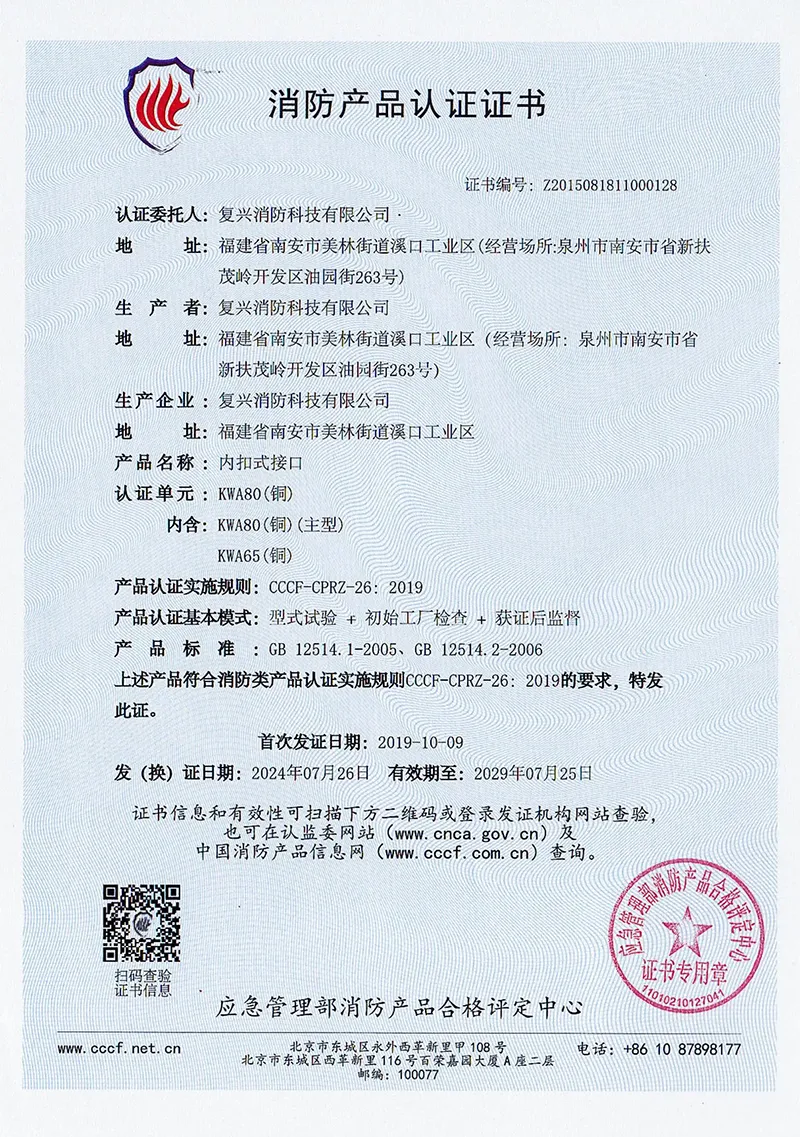

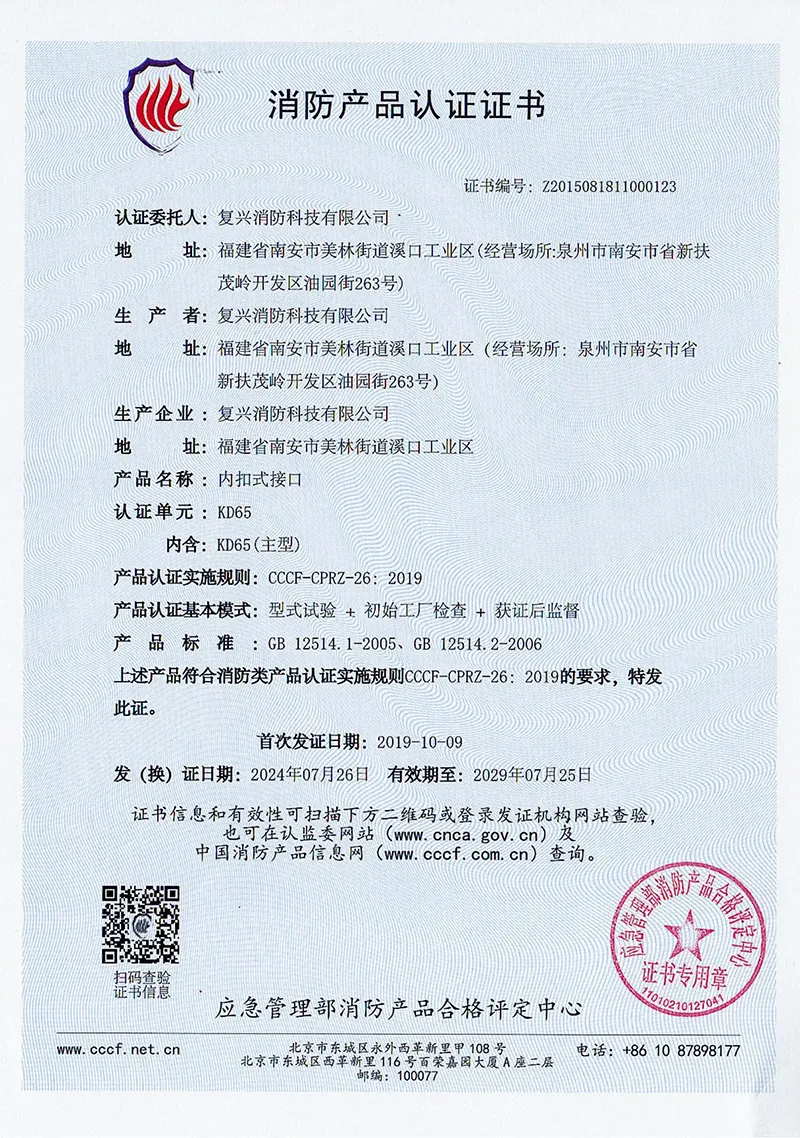

    FUXEON® fire hose couplings have been certified by China's Ministry of Emergency Management and have undergone testing covering mechanical performance, sealing performance, connection reliability, and material durability.

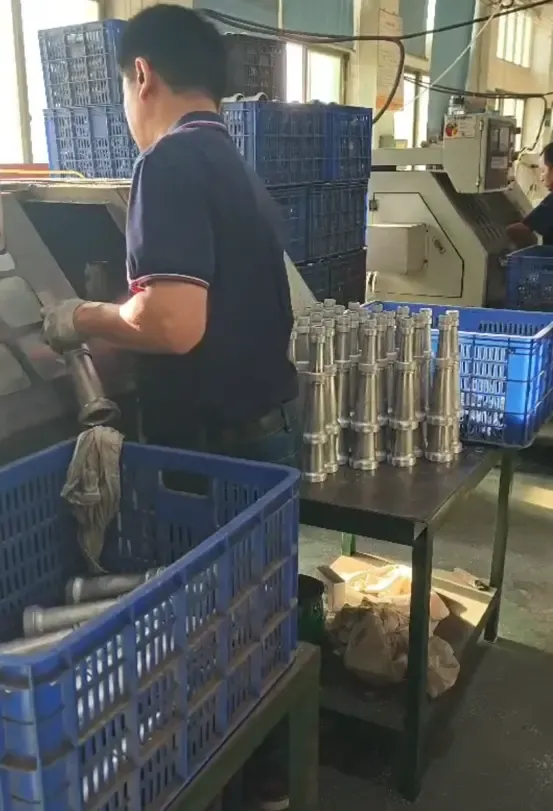

    JIS Machino Coupling Production Machino Coupling Manufacturing
    JIS Machino Coupling Quality Test Fire Hose Coupling Inspection

    Applications

    The JIS Machino Coupling can connect fire hoses with compatible fire hydrants, landing valves, fire trucks, and nozzles. Its quick connection structure is suitable for firefighting systems where hoses need to be connected or replaced efficiently. The coupling can also be used in agricultural irrigation, construction sites, and marine safety applications where compatible hose connections and rapid manual operation are required.

    JIS Machino Coupling Application

    Frequently Asked Questions

    What Is a Machino Coupling?

    A Machino coupling is a quick-connect hose connector commonly used in firefighting and other fluid-transfer applications. It uses a mechanical locking structure instead of relying solely on a threaded connection.

    How Does It Connect and Disconnect?

    The male end is inserted into the matching female connection, allowing the internal spring-loaded slider to engage with the slot. To disconnect, press the ring mechanism on the male side to release the slider, then separate the components.

    What Sizes and Materials Are Available?

    Common nominal sizes include DN40, DN50, and DN65 (1 1/2" to 3"), with other sizes available on request. We provide brass, aluminum, and stainless steel options depending on the working environment.

    Can It Be Customized for My Project?

    Yes. FUXEON® supports OEM/ODM customization for special sizes and irregular structures. You can provide drawings, dimensions, material requirements, or application information for our engineering team to evaluate.

    Is the Machino Coupling compatible with foam mixtures?

    Yes. The standard rubber sealing ring and internal materials are compatible with both water and foam mixtures. This makes it highly suitable for foam-based firefighting systems.

    What is the standard working pressure?

    The standard working pressure for our JIS Machino Coupling is 16 bar (1.6 MPa). Please ensure the pressure rating of your hoses and connected equipment matches this specification.

    How do you prevent leakage?

    We use high-quality, wear-resistant rubber sealing rings. The internal spring-loaded slider ensures a uniform mechanical lock, preventing the coupling from shifting or loosening under high pressure.

    How to maintain the coupling to prevent leaks?

    Regularly inspect the rubber sealing ring for wear or cracks and replace it if necessary. Keep the internal locking mechanism free of sand, dirt, and debris. Applying a small amount of silicone grease can extend the life of the seal.

    What is the difference between Machino and Storz couplings?

    Machino couplings use a push-type connection with an internal locking mechanism, which is fast and can be operated easily. Storz couplings rely on a symmetric claw-tooth locking design. The choice depends on your local firefighting standards and existing equipment.

    What is the lead time and MOQ?

    For standard sizes (DN40, DN50, DN65), small batch orders are typically produced within 15 days. Our MOQ is flexible, starting from 1 piece for sample evaluation. For OEM/ODM requests, lead times depend on the customization details.
