Portable Fire Hose Reel

The FUXEON® Portable Fire Hose Reel is an upgraded and optimized version of traditional fire hoses, belonging to the category of small, portable sprinkler fire extinguishing equipment. Compared to traditional bulky fire extinguishing equipment, this product is compact, flexible in operation, supports low-pressure operation, and can be directly connected to indoor municipal water supply networks or fire hydrant networks, providing rapid water output and adjustable spray patterns.

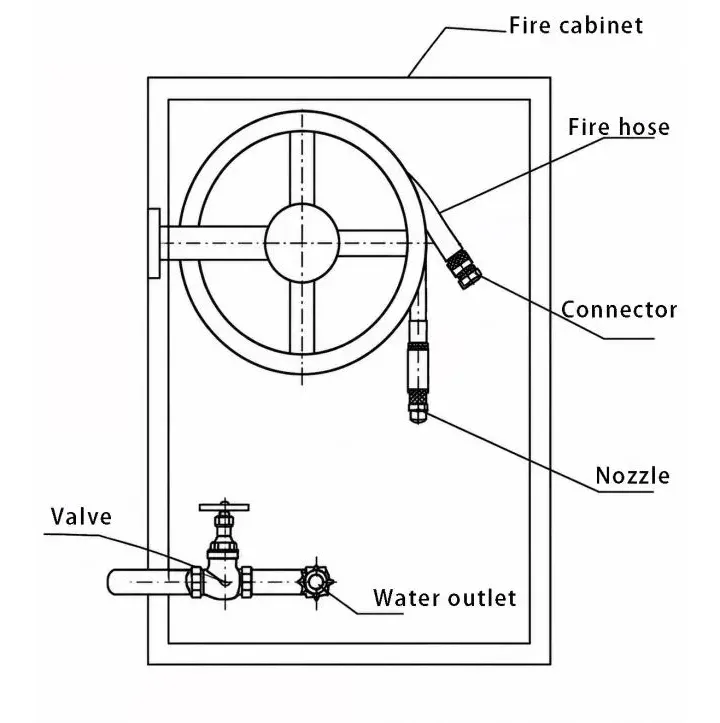

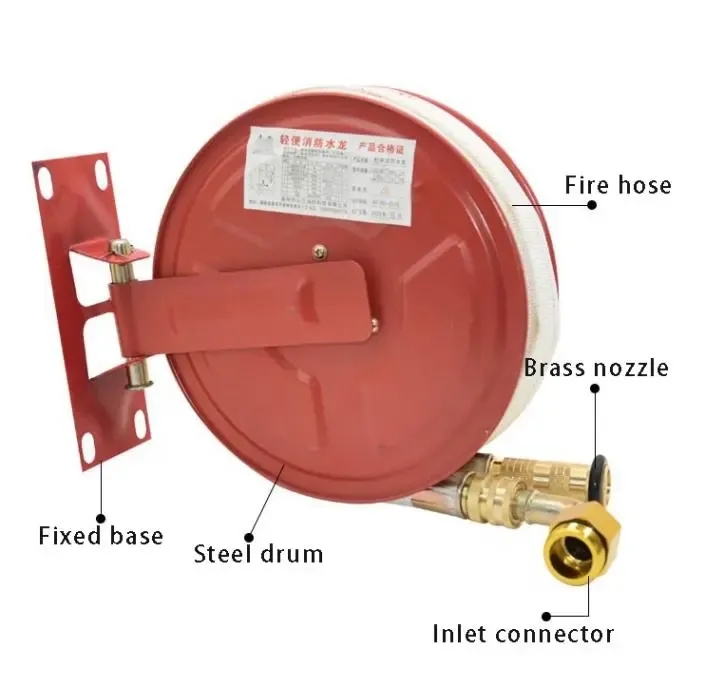

The product consists of three core components: dedicated connecting accessories, a braided fire hose, and an all-copper adjustable nozzle. The reel design facilitates daily storage and rapid deployment in emergencies. No professional training is required for operation. It boasts stable fire extinguishing performance, a long service life, and is suitable for initial fire suppression in various civil and light industrial scenarios. As a professional fire equipment manufacturer in China, we strictly adhere to national fire protection standards in our production processes. Our standardized procedures and rigorous quality control system ensure the stable performance and reliable safety of every FUXEON® portable fire hose reel.

Product Classification and Technical Parameters

FUXEON® portable fire hose reels are scientifically classified according to their compatible water supply pipes, with standardized technical specifications to adapt to different working conditions and building fire protection configuration requirements.

1. Classification Explanation

Products are divided into two types: one for municipal water supply pipes and one for fire water supply pipes. The municipal water supply type is suitable for civil municipal water pressure and is mainly used in homes and ordinary civil buildings; the fire water supply type is compatible with both municipal and professional fire water supply networks, offering stronger pressure resistance and a wider range of applications.

2. Complete Technical Parameter Table

Product Quality and Structural Advantages

1. High-Quality Fire Hose

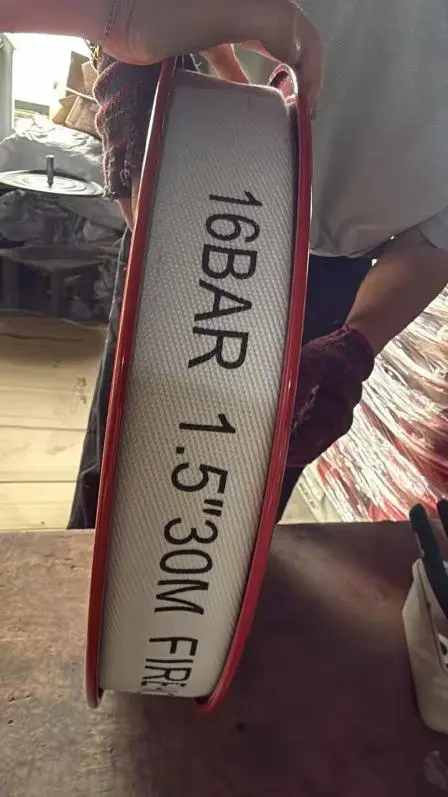

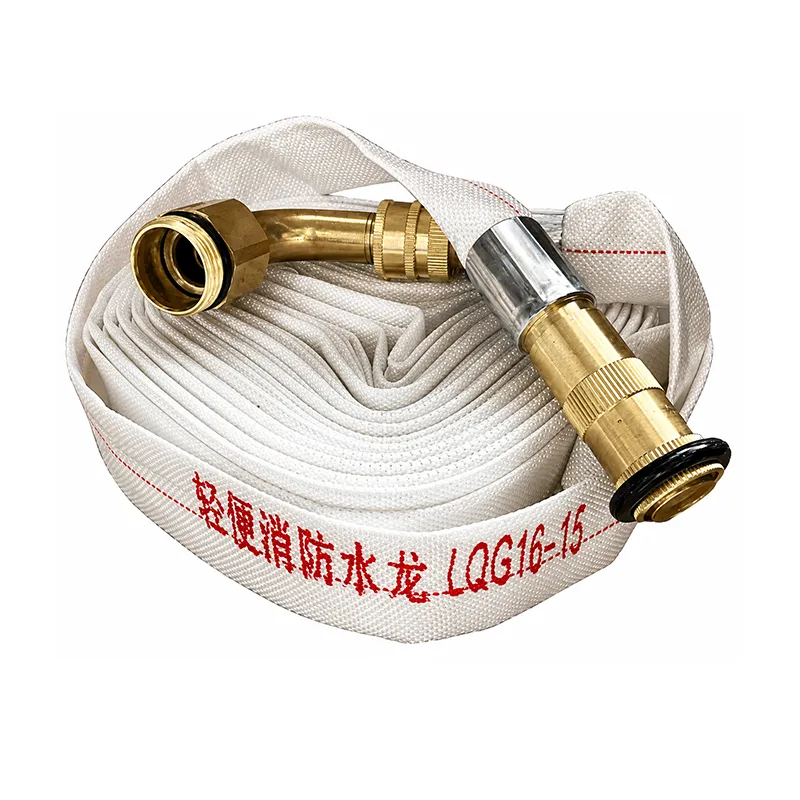

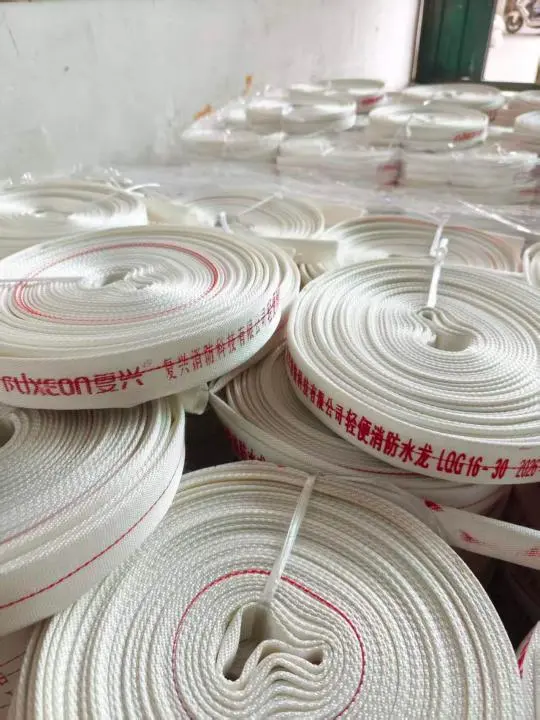

The hose reel with hose uses a high-density, uniformly braided layer with a clean and flat surface, free from defects such as broken warp, skipped warp, skipped weft, and scratches. The inner and outer adhesive layers are of uniform thickness, without wrinkles or dents, exhibiting overall flexibility, wear resistance, and resistance to aging and cracking, allowing for repeated bending and unfolding in emergency situations.

2. High-Quality Metal Fittings and Nozzles

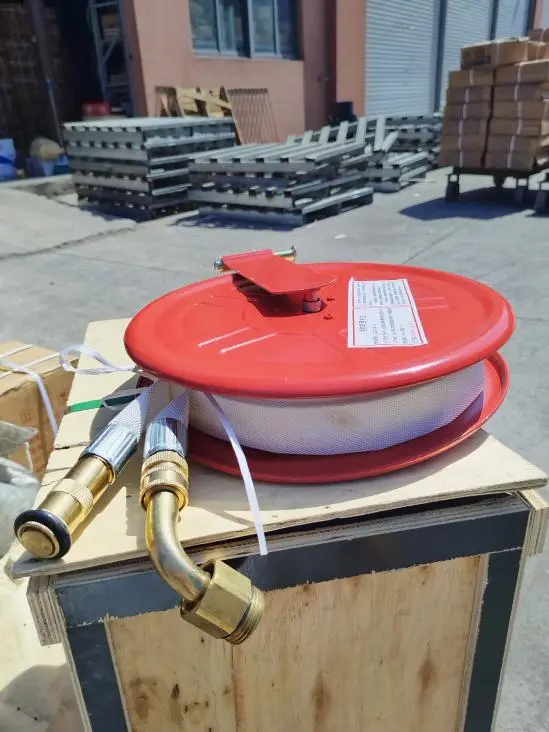

Metal connectors are free of scabs, cracks, and pinholes, with smooth, scratch-free machined surfaces; aluminum alloy fittings undergo anodizing treatment for corrosion and oxidation resistance. The core nozzle is made of high-purity brass, offering wear resistance, corrosion resistance, and a long service life. It supports direct spraying from 0° to 90° and stepless switching of spray modes, adaptable to various fire situations.

The nozzle features a single-button start/stop design, simplifying operation. With an operating torque ≤15N·m, it is easily operated by ordinary users, enabling rapid fire response.

Applicable Scenarios and Configuration Specifications:

1. Mandatory Configuration Scenarios

Densely populated public buildings, super high-rise buildings over 100 meters, commercial service outlets with a building area of over 200㎡, and refuge floors in various high-rise buildings.

2. Optimal Configuration Scenarios:

- Single-story/multi-story Class D and E factories (warehouses) with fire resistance ratings of Class I and II and a small amount of combustible materials;

- Class D factories (warehouses) with fire resistance ratings of Class III and IV and a volume ≤3000m³, and a volume ≤5000m³;

- Grain warehouses, remote and uninhabited independent buildings; buildings storing water-sensitive flammable and explosive materials;

- Small buildings with no indoor water supply pipes, relying on outdoor water intake, and a volume ≤5000m³.

Real-world Application Cases

Case 1: Initial Fire Response in a Residential Kitchen

A high-rise residential building in East China was equipped with FUXEON® fire water hose reels in its stairwells. A resident's kitchen experienced an overheated oil pan fire. The resident quickly opened the fire extinguisher box, deployed the hose, switched to the spray mode, and, relying on a stable water pressure of 0.25MPa, extinguished the fire within 30 seconds. The gentle water spray prevented the oil and fire from splashing and spreading, successfully avoiding the spread of the fire and property damage, highlighting the product's advantages of rapid and easy use in civilian scenarios.

Case Study 2: Electrical Fire Prevention in Commercial Shops

A 300㎡ street-front shop equipped with a FUXEON® fire hose reel experienced a short circuit during business hours, igniting nearby plastic products and causing an initial solid fire. The shop staff quickly deployed the equipment, switched to direct-fire mode, and precisely targeted the fire, extinguishing the flames within 2 minutes. The product's 8-meter direct-fire range and stable flow effectively controlled the fire, preventing it from escalating and causing significant losses, making it suitable for emergency fire prevention needs in commercial public places.

Standard Usage Procedures

The product is designed for rapid emergency use and is simple to operate, requiring no professional skills. Anyone can quickly learn to use it:

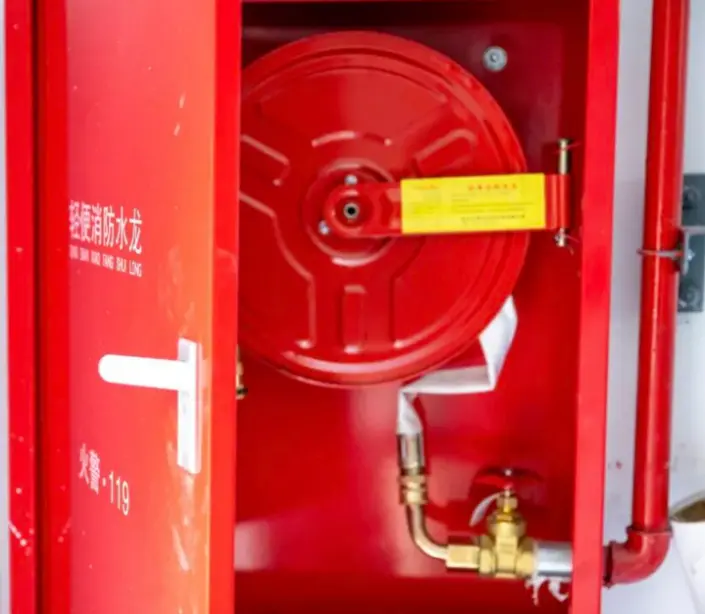

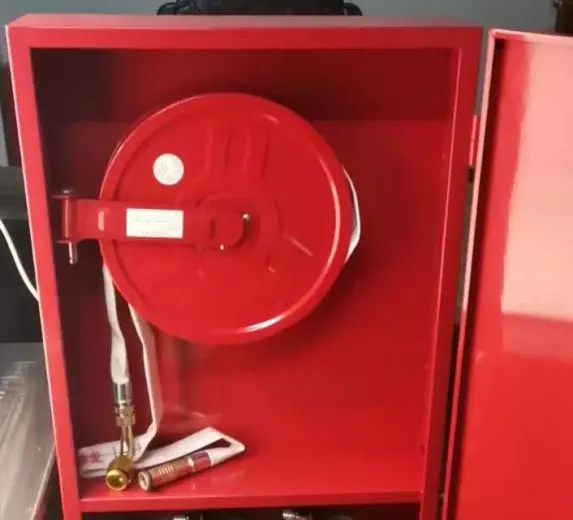

1. In case of fire, quickly open the fire hose reel box door;

2. Pull out and straighten the hose, connecting the special connector to the indoor water supply pipe outlet;

3. Turn the water supply valve counterclockwise, open the nozzle switch, hold the nozzle firmly with both hands, adjust the spray mode according to the fire situation, and spray to extinguish the fire;

4. After extinguishing the fire, close the water supply valve and nozzle valve in sequence, rinse the hose clean, and place it in a cool, ventilated place to dry. Return the reel to its original position for storage.

FAQ

Q1: What is the core difference between FUXEON® portable fire hose and reel and ordinary hose reels?

The core difference lies in the material and functional positioning. FUXEON® products use dedicated fire hoses and brass nozzles, possessing fire safety certifications and standard pressure resistance parameters, specifically designed for emergency fire suppression. Ordinary reels are mostly made of PVC hoses, only suitable for daily water supply and cleaning, lacking fire-retardant properties, and unable to meet building fire safety acceptance standards.

Q2: Can FUXEON® provide complete customized fire protection solutions?

Yes. We offer one-stop integrated services. In addition to standard portable fire hose reels, we can customize various specifications of fire cabinets. We can provide complete fire equipment solutions for different scenarios such as residential, commercial, and industrial applications, achieving integrated supply of products and accessories.

Q3: Which scenarios are the two FUXEON® reels suitable for?

The tap water pipe version (0.25MPa) is suitable for homes, ordinary multi-story residential buildings, and small shops, matching the standard municipal water pressure; the fire water supply pipe version (0.8/1.0/1.6MPa) is suitable for dual water supply systems and can be used in high-standard fire protection scenarios such as super high-rise buildings, large shopping malls, and industrial plants. It has better pressure resistance and range, and meets stringent fire protection requirements.
