Swing Fire Hose Reel

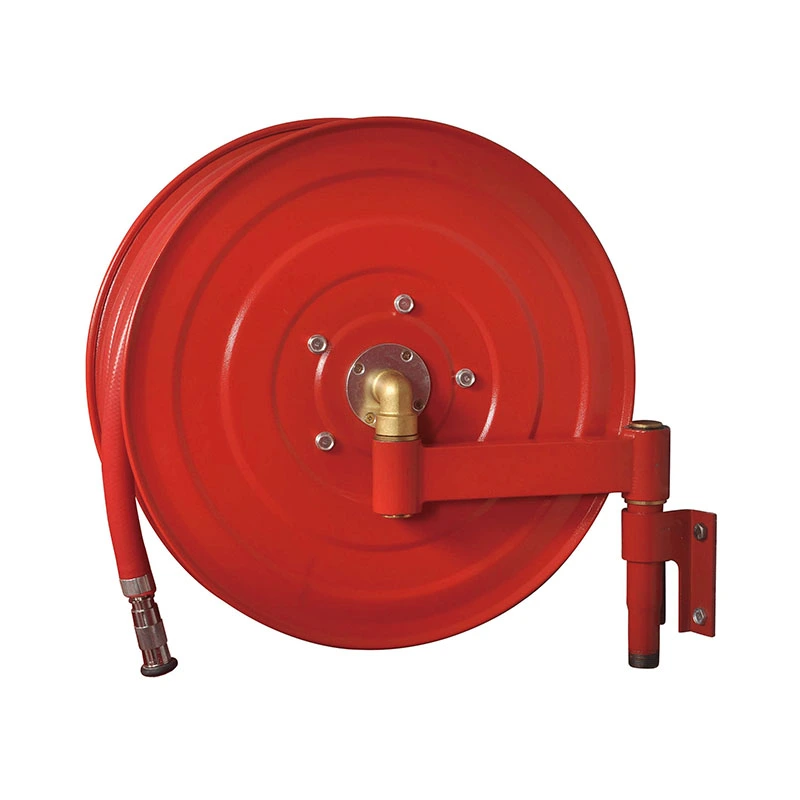

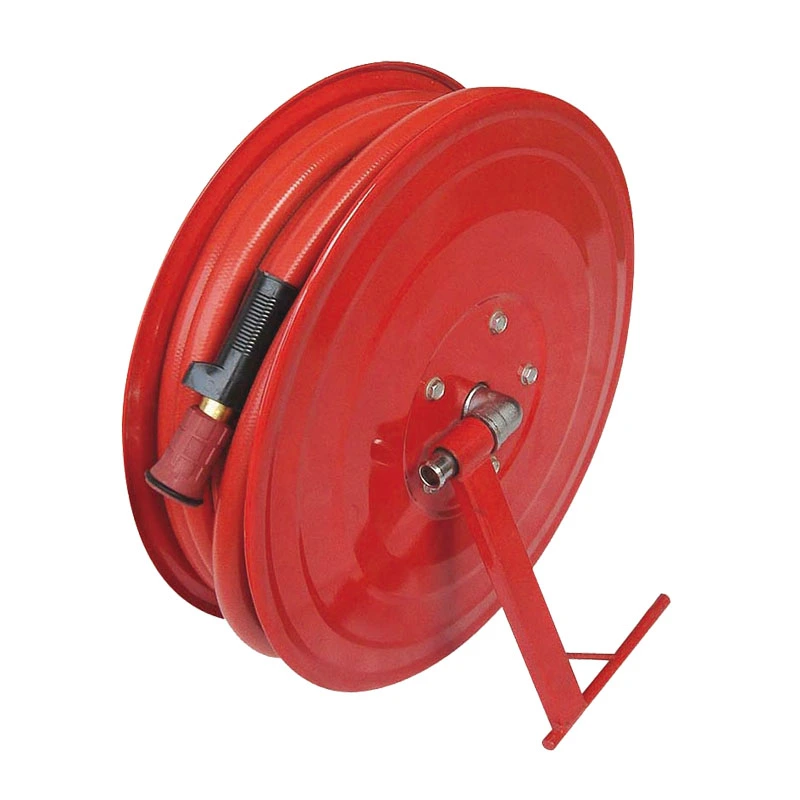

FUXEON® has been a supplier exporting products overseas for many years.The swing fire hose reel is constructed with a robust metal frame housing a 20m to 30m hose. It is mounted on a wall using rotatable brackets, allowing for significant rotation. In use, the hose can be quickly pulled out, the valve opened, and water sprayed directly through the nozzle to extinguish the fire. It is convenient, quick to use, and easy to maintain.

Parameter:

Manual swing type fire hose reel Features:

Our fire hose reels are LPCB certified, and their specifications fully consider the needs of different usage scenarios. Operating pressures are available in 8 bar, 10 bar, 12 bar, and 16 bar, and hose lengths can be selected in 20 meters, 25 meters, or 30 meters to meet specific needs. They are also available in 3/4-inch and 1-inch sizes to flexibly adapt to the configuration requirements of various fire protection systems.

The 1-inch fire hose reel features three practical operating modes: manual swing, manual fixing, and automatic mode. Each mode is tailored to different installation environments and usage requirements. Whether flexible operation is needed in general scenarios or stable use is required in specific environments, it provides a convenient and reliable user experience.

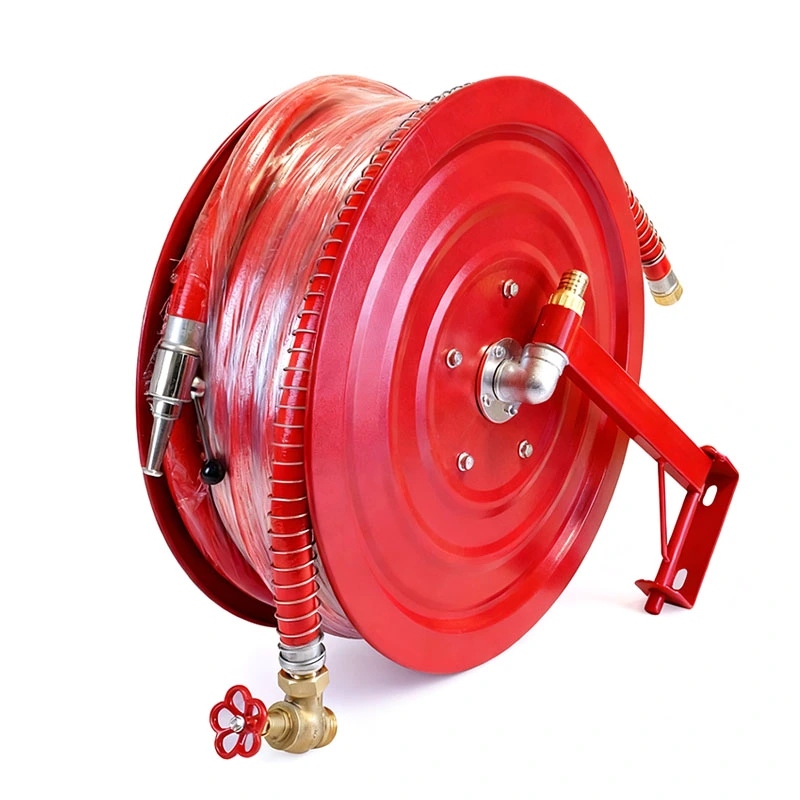

This fire hose reel with a valve is manufactured in full compliance with the BS EN 671-1:2012 international standard, adapting to the usage requirements of various fixed fire protection systems. The hose is made of high-strength PVC material, which can easily cope with high-pressure conditions. It has excellent pressure resistance, solid wear resistance and deformation resistance. Even after long-term use, its performance can remain stable and reliable, providing a solid guarantee for the smooth progress of fire fighting operations.

FAQ

Q1: What are the core application advantages of swing fire hose reels?

A: The core advantage is the swing design, which allows the reel to rotate 180° or 360° horizontally, expanding the fire-fighting coverage area. They are compact, wall-mounted, saving space, and the hose can be pulled out quickly for immediate use. No professional training is required, making them suitable for rapid early fire suppression by ordinary personnel.

Q2: What are the common specifications and connection methods?

A: Common hose lengths: 15m, 20m, 25m; hose caliber: DN25, DN32. Working pressure: 1.0–1.6 MPa, complying with GB 14561 and EN 671 standards. Connection method: flange or thread connection to the indoor fire hydrant pipeline, with a built-in valve for on-off control.

Q3: What types of fires can swing fire hose reels extinguish?

A: They are mainly used for Class A fires (solid materials: wood, paper, textiles) and small-scale Class B fires (flammable liquids: oil, gasoline). They use clean water as the fire-extinguishing medium, suitable for early fire suppression; not recommended for large-scale fires or electrical fires (unless used with insulated hoses).
