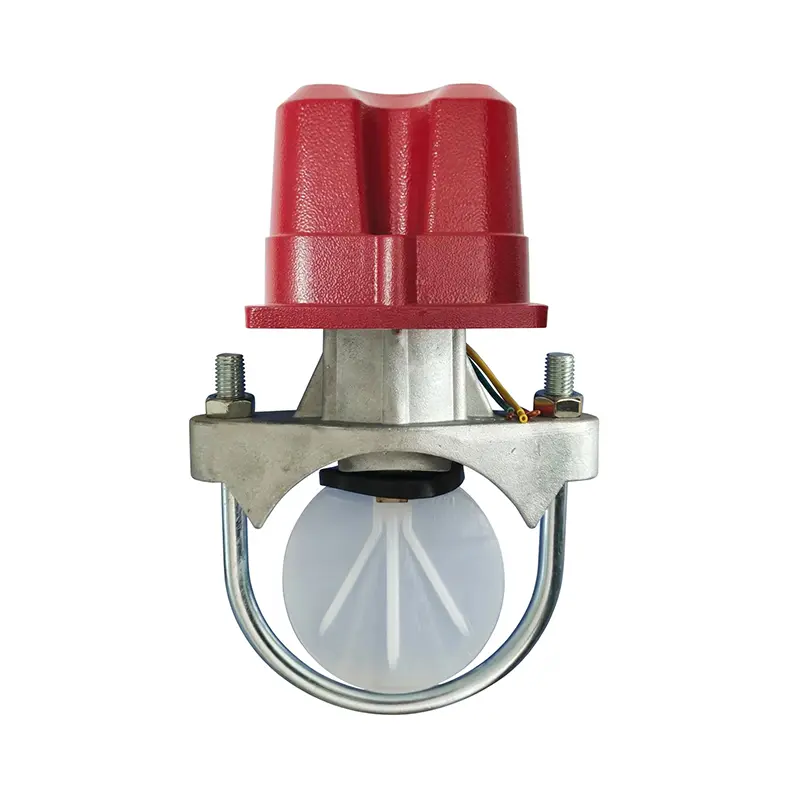

Waterflow Detector

The sensitivity of the waterflow detector should be within the range of 4 to 10 gallons per minute, with a maximum static pressure rating of up to 232psi. It is suitable for pipes ranging from 2 inches to 8 inches (50 mm to 200 mm). It can respond to the water flow in the specified direction after a preset delay, and this delay function can also be adjusted on site.

waterflow detector with retard can filter out interference signals such as short-term waterflow fluctuations and water pressure impacts in pipelines, preventing false alarms in the system. It is widely used in hotels, shopping malls, restaurants, entertainment venues, hospitals, office buildings, factories, warehouses and other places where water is used for fire fighting in medium and light hazard buildings.

Technical parameters：

How to install a water flow indicator switch?

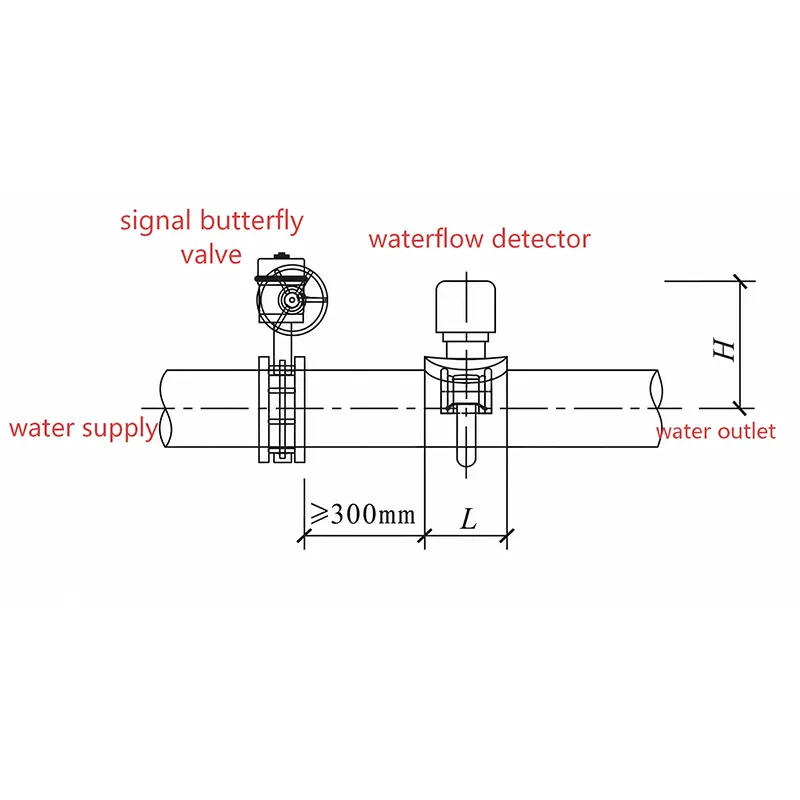

The pipeline connected to the water flow indicator switch must ensure that the length of the straight pipes before and after it is not less than five times the diameter of the pipeline. When selecting the water flow indicator switch, the corresponding selection should be made according to the nominal diameter of the pipeline in accordance with the technical parameter table.

When installing, pay attention to the direction of water flow, which should be consistent with the arrow on the product. The delay parameters have been preset at the factory. If adjustment is needed, it must be operated by professional fire protection technicians. Non-professionals are strictly prohibited from disassembling the delay module.

Wiring must strictly match the rated voltage of DC24V. It is strictly forbidden to connect the wrong polarity or use it under overvoltage to avoid damaging the delay circuit.

Note: After the installation of the water flow detection sensor, it should be inspected once every six months, with a focus on checking whether the water flow response, delay function and contact output are normal. Keep the electronic components of the product dry and clean to prevent water vapor and dust from entering.

Why choose us?

1. We are both a factory and a trading exporter, and can provide customized water flow switch fire alarm according to your requirements. In this way, you can directly understand the production situation and specific details of the product, ensuring that the product quality is all under your control. If you encounter any difficulties in after-sales service, you can also communicate directly with the manufacturer. We will solve the problems together with you.

2. Our products have undergone sensitivity tests, which included checking the alarm conditions and reset times under different flow rates, verifying whether the test delay time is within the range of 2 to 99 seconds, and assessing the sealing performance, etc. We have obtained the CCCF certification from China. Additionally, we have extensive experience in project engineering support and can provide suitable fire protection products.

FAQ:

Q: Can I get a sample?

A: Yes, we can mail you a sample so you can test its quality and functionality.

Q: Can I customize my logo?

A: Yes, we offer brand OEM services.

Q: How long is the production cycle?

A: It usually takes 15 to 30 days, with the exact duration depending on the quantity of products and the production schedule.
