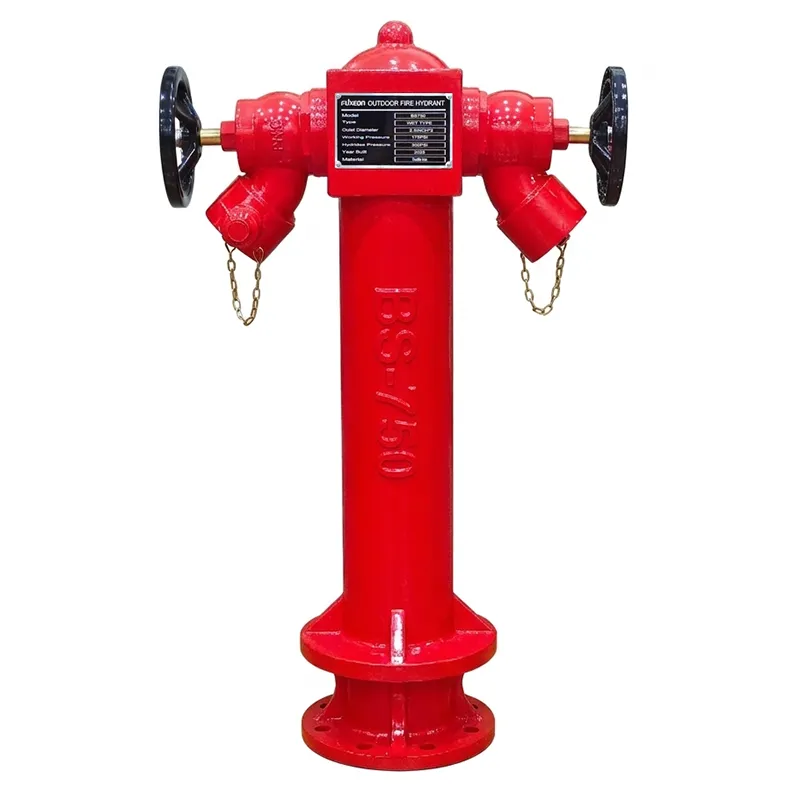

2-Way BS Fire Hydrant

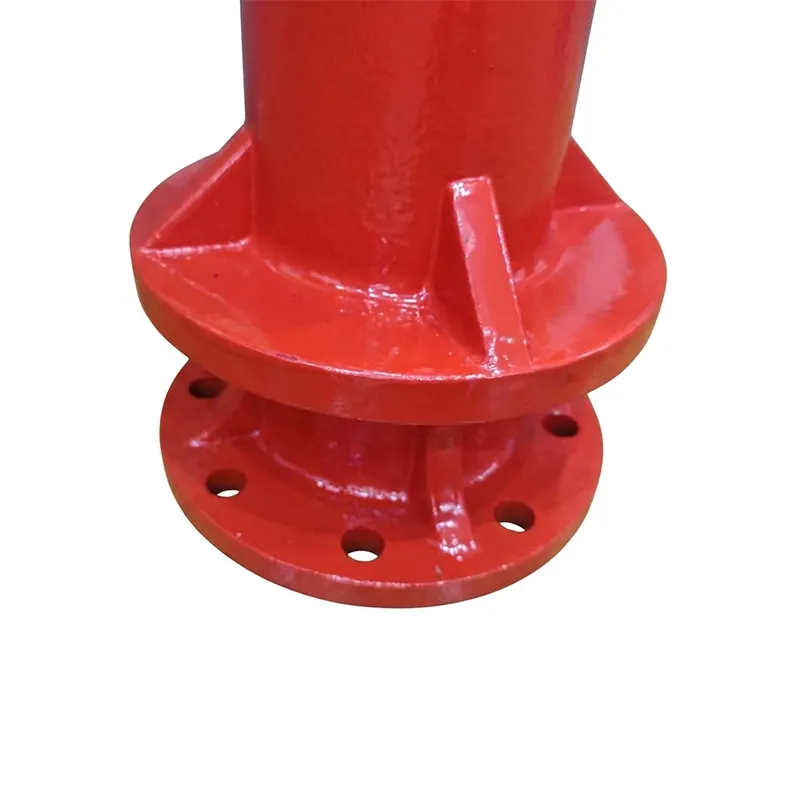

In China,the FUXEON® 2-way BS fire hydrantis a wet, upright fire hydrant suitable for outdoor fire safety scenarios. The body is made of high-strength ductile iron, with an internal water storage system to ensure immediate water supply in case of fire. The product conforms to BS 750 standards, featuring a 4-inch (DN100) BS flange inlet and two 2.5-inch BS336 brass angled outlet valves. It operates at 16 bar (1.6 MPa) and has a test pressure of 30 bar, undergoing rigorous testing to ensure leak-free operation and a robust structure. The dual-outlet design allows firefighters to connect fire hoses from both sides simultaneously, significantly improving firefighting efficiency. It is suitable for warm areas without the risk of freezing and is typically installed on the ground.

Technical Specifications

Key Features

1.Superior Material Construction

The 2-way BS fire hydrantbody is constructed from durable ductile iron, offering excellent impact resistance, corrosion resistance, and an exceptionally long service life in outdoor environments. All outlet components are made of precision-machined brass, ensuring excellent sealing, smooth operation, and resistance to wear and chemical corrosion.

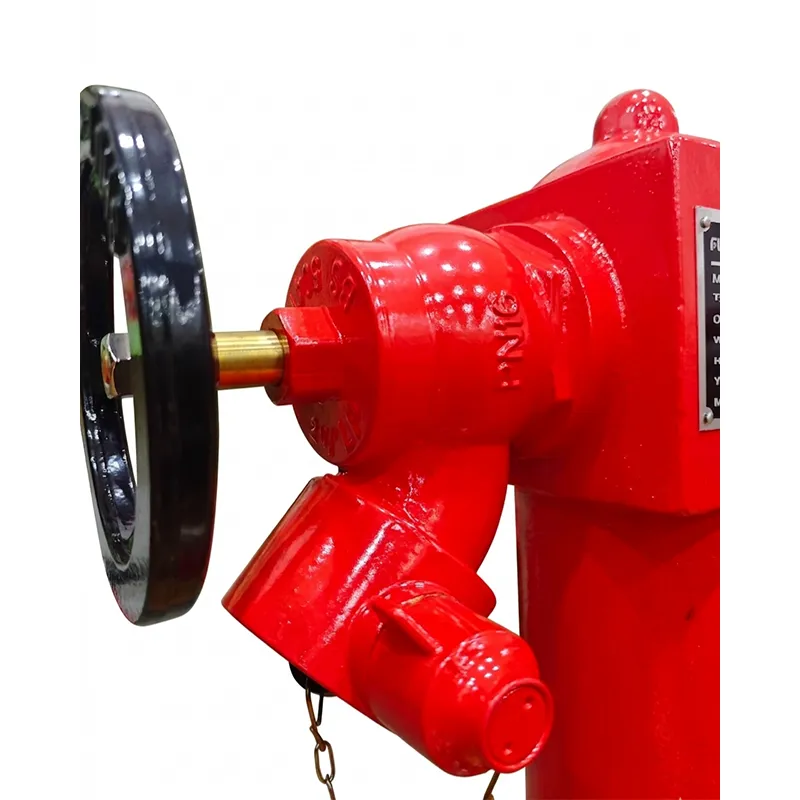

2.Dual Outlet Design

Equipped with two independent 2.5-inch angled landing valves, it allows simultaneous connection of two fire hoses. This design enables multi-directional water supply, ideal for complex fire scenarios requiring flexible hose deployment.

3.Instant Water Supply

As a wet hydrant, the 2-way BS fire hydrant's internal chamber is always filled with pressurized water, avoiding the water supply delays common in dry hydrants and ensuring immediate water flow after valve opening.

4.Superior Pressure Resistance

Designed for a working pressure of 16 bar and passed a 30 bar water pressure test, exceeding standard requirements to ensure reliable operation even under high-intensity firefighting conditions.

5.Compliance and Compatibility

Fully compliant with BS 750 standards, ensuring compatibility with international firefighting equipment and compliance with global safety regulations.

6.Weather Resistance and Corrosion Resistance

Both inner and outer surfaces are coated with a high-quality epoxy coating, effectively resisting UV rays, moisture, and environmental corrosion.

Real-world Application Case

Singapore Marina Business District Fire Safety Upgrade Project: This area has dense buildings and a warm, humid climate, requiring corrosion-resistant and rapidly supplying firefighting facilities. As a Chinese supplier, FUXEON® provided over 200 customized 4" BS standard fire hydrant, equipped with an enhanced anti-corrosion coating to withstand the coastal salt spray environment.

In 2025, a kitchen fire broke out at a waterfront restaurant in the area. Firefighters simultaneously connected hoses to the dual outlets of a nearby FUXEON® fire hydrant, achieving full-flow water supply within 12 seconds and successfully containing the fire within the kitchen area, minimizing damage.

FUXEON® Factory Advantages

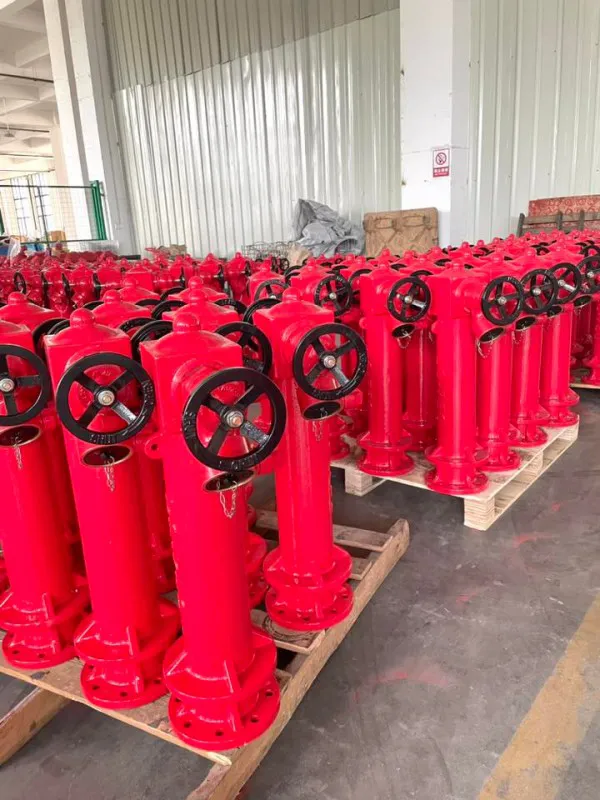

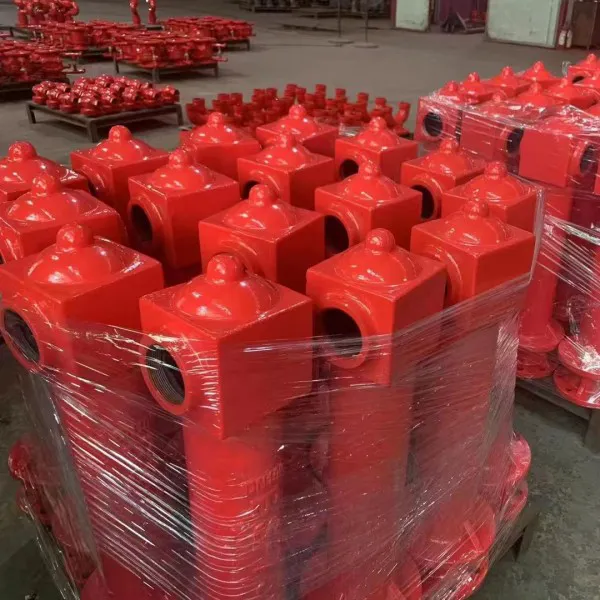

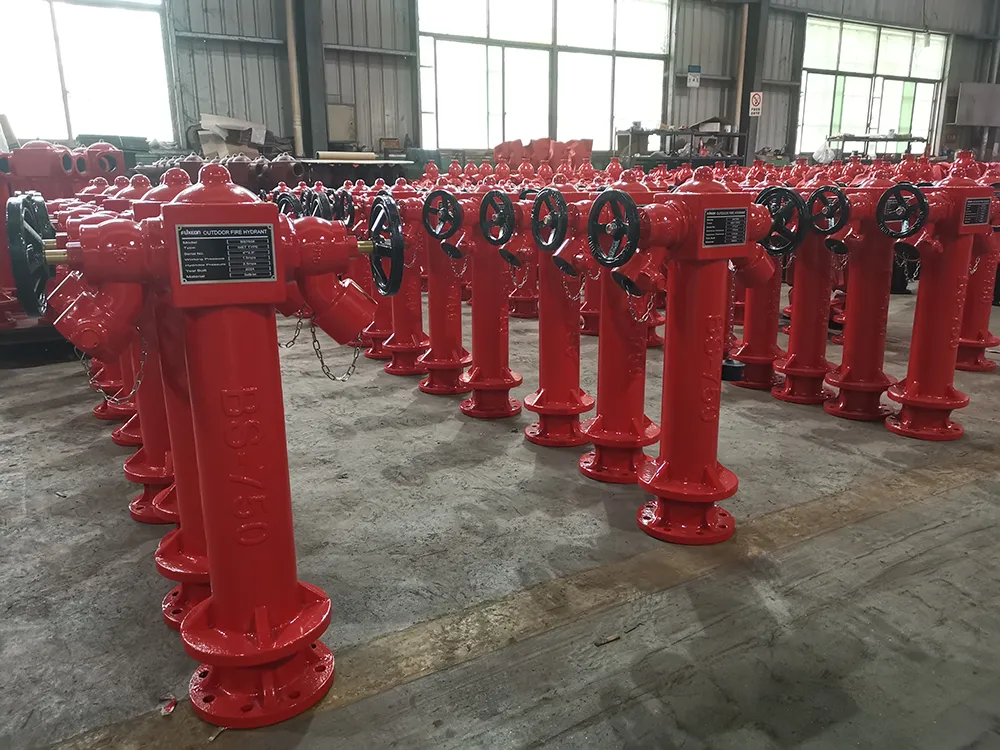

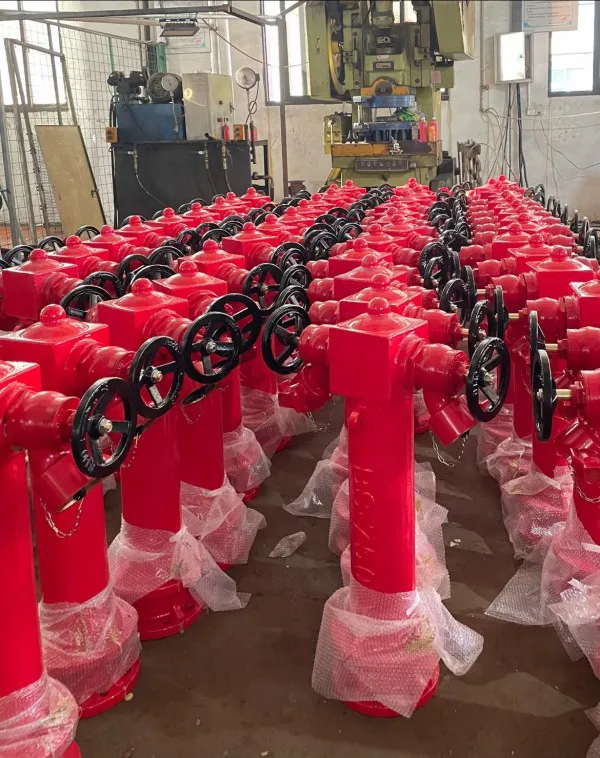

We have our own dedicated DN100 BS pillar fire hydrant,production line. As a direct manufacturer, we eliminate intermediaries, offering superior cost-effectiveness. We can customize products according to specific customer parameters to meet on-site needs. Each product undergoes rigorous pressure testing before leaving the factory to ensure reliable quality. We can handle large global orders and deliver on time.

FAQ

Q1: What climates is the FUXEON® BS 750 pillar fire hydrantsuitable for?

A1: Suitable for warm climates without the risk of freezing, as it stores water year-round. In cold regions, our dry-type fire hydrants or matching insulation solutions can be selected.

Q2: How does the two-way design improve fire extinguishing efficiency?

A2: The dual outlets can connect to two fire hoses simultaneously, providing two independent water flows, or simultaneously connect the hoses to the fire truck's suction hose, shortening deployment time and expanding coverage.

Q3: How should this Ductile iron BS fire hydrantbe maintained?

A3: Conduct a visual inspection for leaks and damage quarterly, and perform an operational test annually; regularly lubricate the brass outlet, inspect the external coating, and easily damaged parts can be easily replaced, resulting in low maintenance costs.
