GOST Underground Steel Fire Hydrants

FUXEON® GOST underground steel fire hydrants are professional underground fire-fighting facilities for municipal and industrial water supply networks, fully compliant with GOST standards. As a professional factory specializing in the research and development and production of fire-fighting equipment, FUXEON® integrates materials, structure, and anti-corrosion technologies to create high-performance, cost-effective fire hydrants, solving the pain points of traditional underground fire-fighting facilities such as short service life and poor stability.

GOST underground steel fire hydrants are core components of underground pipeline systems, primarily installed in critical infrastructure such as water supply stations, thermal power plants, and water treatment plants. Combined with dedicated KPA fire hydrant posts and flange four-way bases, they form a complete fire-fighting water supply system, enabling rapid water supply during fires and ensuring the safety of personnel and property in key areas.

Structural and Performance Characteristics

1. Anti-corrosion Coating

GOST underground steel fire hydrants are coated with a bright red alkyd paint anti-corrosion coating with a thickness of no less than 250μm. This coating provides excellent resistance to soil corrosion, moisture, and chemical attack, maintaining stable color and protective performance even in long-term underground environments, effectively extending the product's service life to 30 years.

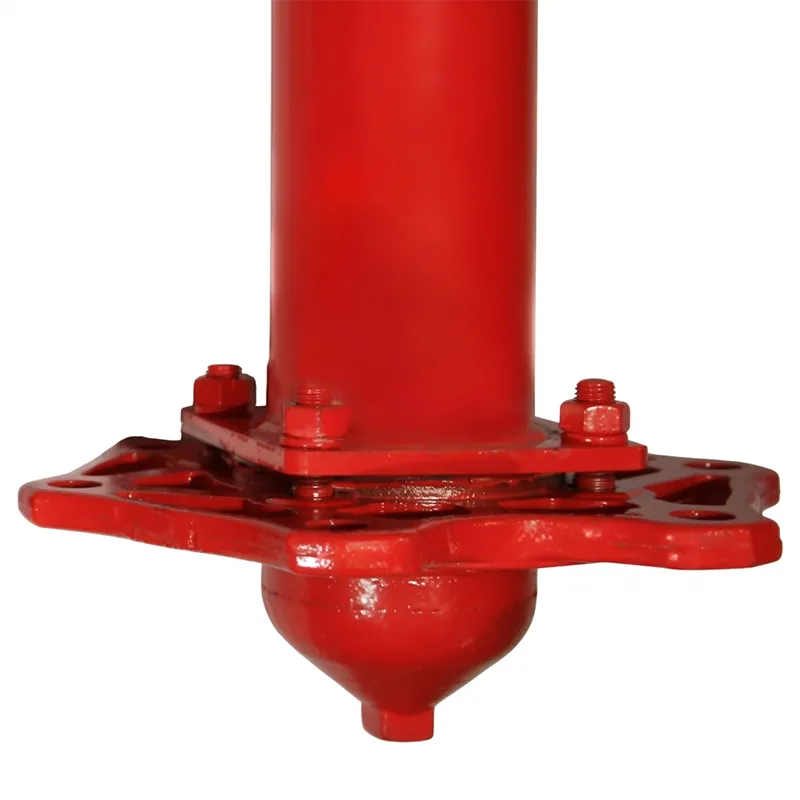

2. Dual Connection Design

- One end features a standard flange connection, offering strong sealing and load-bearing capacity, suitable for stable connection to the main water supply pipe;

- The other end features a standard threaded connection, facilitating quick assembly and disassembly of compatible components, improving installation and maintenance convenience.

3. Convenient Manual Operation

- Rotate the upper center key counterclockwise to open the valve disc;

- Rotate clockwise to close the valve disc;

- Opening torque is only 105 N·m, making operation easy in emergency situations.

4. Wide Temperature Adaptability

- Normal operating temperature: 5℃～90℃, adaptable to temperature fluctuations in typical underground environments;

- Cold Region Protection: When the ambient temperature is below 0℃, standard antifreeze insulation treatment ensures normal operation at low temperatures and avoids freezing damage.

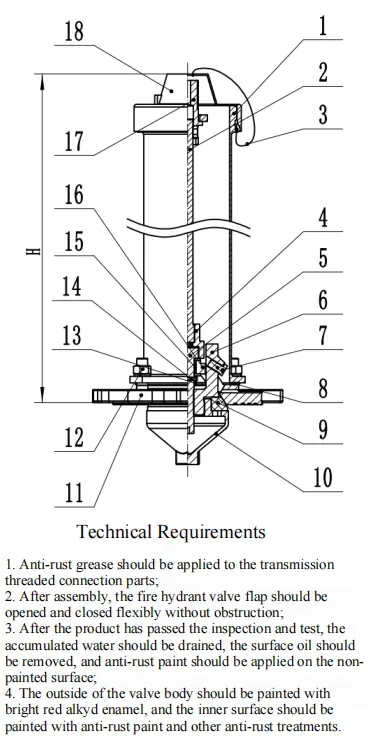

Technical Parameters

Maintenance and Management

1. Inspection Frequency

Conduct routine inspections twice a year, in spring and autumn, and proactively identify potential problems in advance according to seasonal changes.

2. Maintenance Points

Check the connecting threads, the square head at the top of the spindle, and the main body for wear, deformation, or damage; test the overall sealing performance to ensure no leakage under working pressure; test the spindle's opening and closing flexibility to ensure smooth operation without jamming; check the integrity of the anti-corrosion coating and repair any damage promptly; check the antifreeze insulation facilities before winter in cold regions to ensure reliable operation at low temperatures.

Real-world Application Case

Project: Fire Water Supply Network Upgrade at Aksu Thermal Power Plant, Kazakhstan

The Aksu Thermal Power Plant is a key energy facility in northern Kazakhstan. The existing underground fire hydrants were aging, frequently leaking, difficult to operate, and severely corroded, posing significant fire hazards. The power plant needed to upgrade its network by replacing them with durable and economical products that meet GOST standards.

1. Solution

The project selected 126 sets of FUXEON® DN125 GOST underground steel fire hydrants (spindle lengths of 1000mm and 1500mm), paired with KPA columns and flange four-way bases. As a professional Chinese supplier, FUXEON® provided customized installation guidance and technical training tailored to the local cold climate.

2. Application Results

- Stable Operation: No leaks or malfunctions in 3 years of operation; the 250μm alkyd coating remains intact; no significant corrosion was observed in the high-humidity, slightly corrosive soil of the power plant.

- High Efficiency in Emergency Response: In a boiler room electrical fire in 2024, firefighters completed hose connection within 90 seconds, ensuring stable high-pressure water flow for rapid fire extinguishing, preventing equipment damage and production downtime.

- High Efficiency in Maintenance: A single fire hydrant requires only 15-20 minutes for semi-annual inspection; it operates smoothly with intact threads, and maintenance costs are 60% lower than older models.

- High Cost-Effectiveness: The total investment for the project is 40% lower than European brands, fully meeting GOST standards and the 30-year design life requirements of the power plant.

3. Customer Testimonials

The power plant's infrastructure manager stated, "FUXEON® GOST underground steel fire hydrants balance economy and reliability, perform stably in harsh environments, and are easy to maintain, significantly improving our fire safety level. We will continue to cooperate with this professional manufacturer for future facility upgrades."

FAQ

Q：What GOST standards do your underground steel fire hydrants comply with?

A：Our hydrants fully comply with GOST 8220-85 (classic Russian underground hydrant standard) and GOST R 53961-2010 (updated national standard). They also meet the new GOST 35105-2024 (effective Nov 2025) for technical requirements and testing methods. Certified for use in Russia and all CIS countries (Belarus, Kazakhstan, Uzbekistan, etc.).

Q：How does the frost-proof & drainage system work in cold climates?

A：Designed for -40°C to +50°C operation. The hydrant features an automatic drainage valve: when closed, residual water in the barrel drains completely (2–3 mins) to prevent freezing/bursting. No manual draining needed. Steel body with hot-dip galvanization + epoxy coating ensures corrosion resistance in high-moisture soil.

Brand and Service Advantages

FUXEON® is a leading GOST standard fire equipment manufacturer in China, integrating R&D, production, sales, and service. It possesses complete production qualifications and a quality certification system, and its products undergo rigorous testing to meet GOST and international fire protection standards.

We provide one-stop service: customized parameter solutions, on-site installation guidance, technical training, and after-sales maintenance support. With years of export experience, we deeply understand the fire infrastructure needs of GOST standard markets such as Russia and the CIS, providing reliable products and professional services to global customers.
