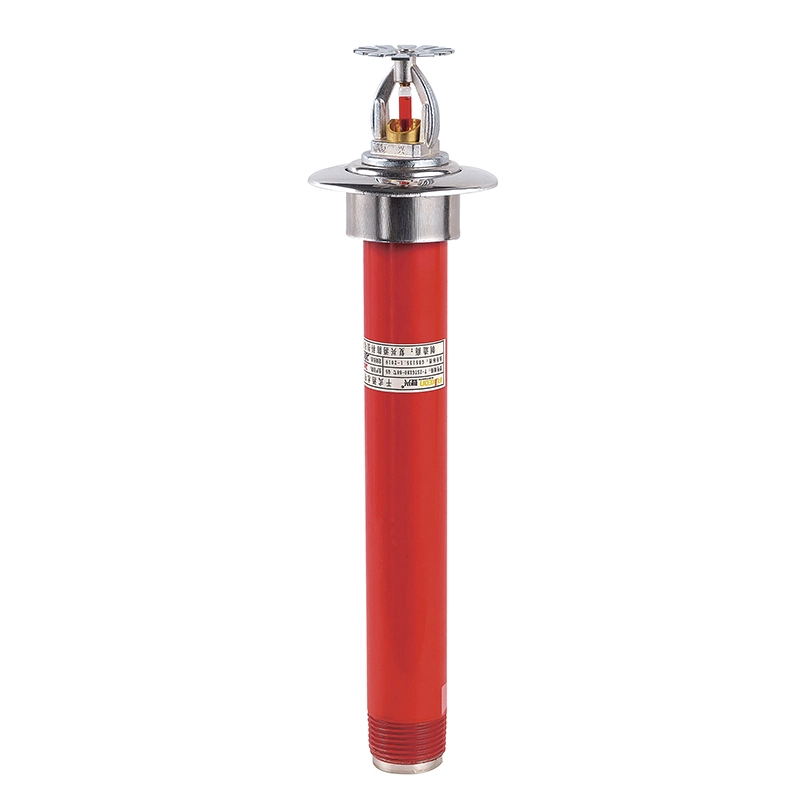

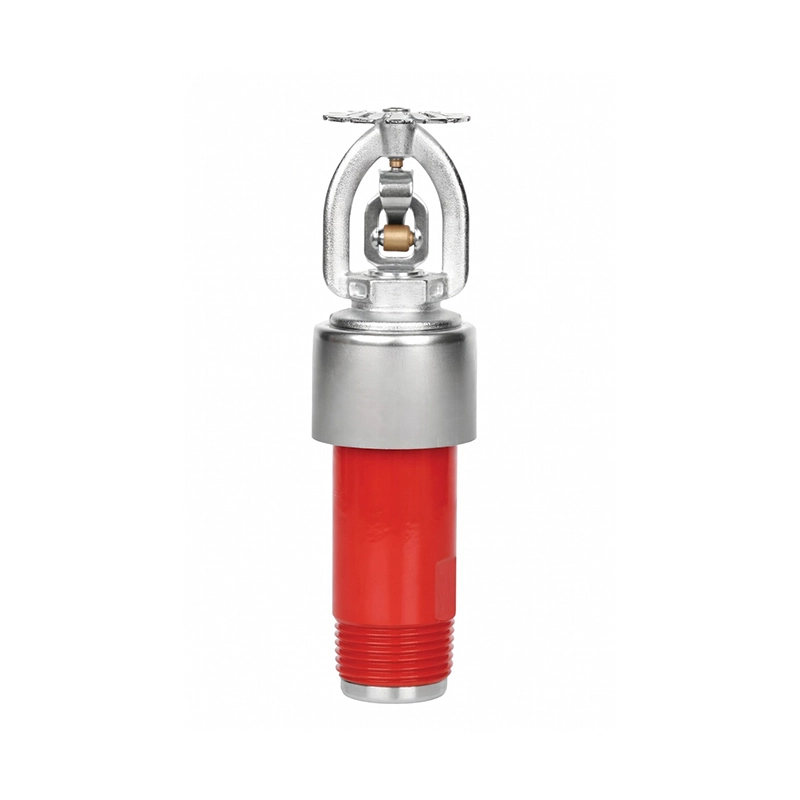

Dry Type Fire Sprinkler

Leveraging years of experience in fire equipment R&D and manufacturing, FUXEON®'s Dry Type Fire Sprinkler boasts significant advantages in materials and adaptability.

1. Superior Materials

Utilizing stainless steel internals and a brass sprinkler head, the materials meet high fire durability standards, offering corrosion resistance, high-temperature resistance, and strong sealing, effectively resisting low-temperature damage and extending service life.

2. Multi-Scenario Adaptability

The Dry Type Fire Sprinkler is primarily used in dry and pre-action fire suppression systems, covering scenarios where sprinkler heads/pipes are exposed and frozen, requiring seasonal drainage to prevent condensation. It is also suitable for wet systems in areas prone to freezing, and for various locations such as warehouses and low-temperature workshops.

3. Customized Services

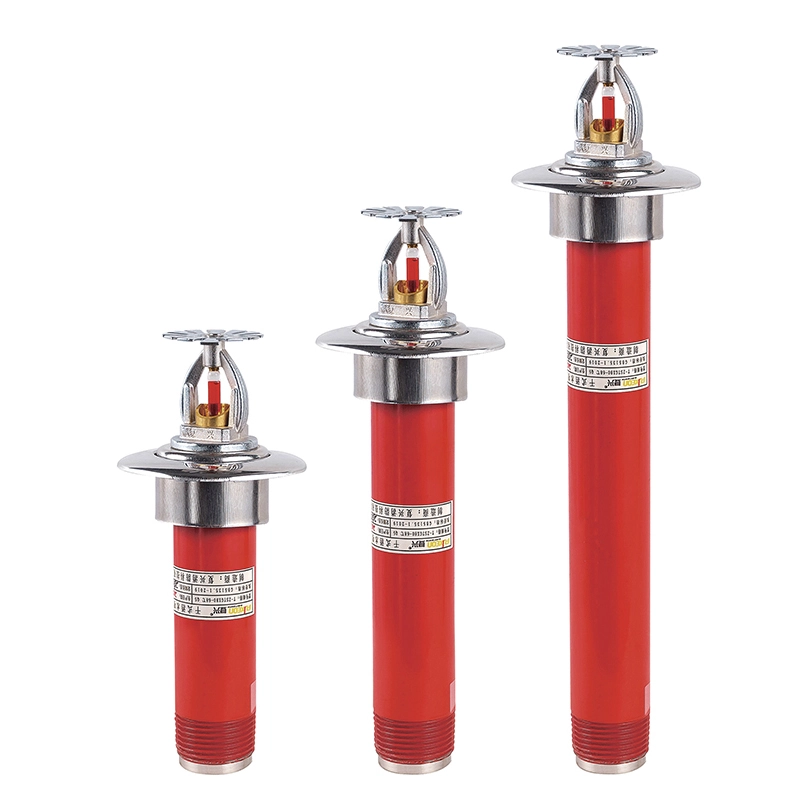

Leveraging our own factory production advantages, we can customize sprinkler head lengths according to on-site installation requirements, ensuring a perfect fit with pipe layout and installation space.

Technical parameter:

Working Principle

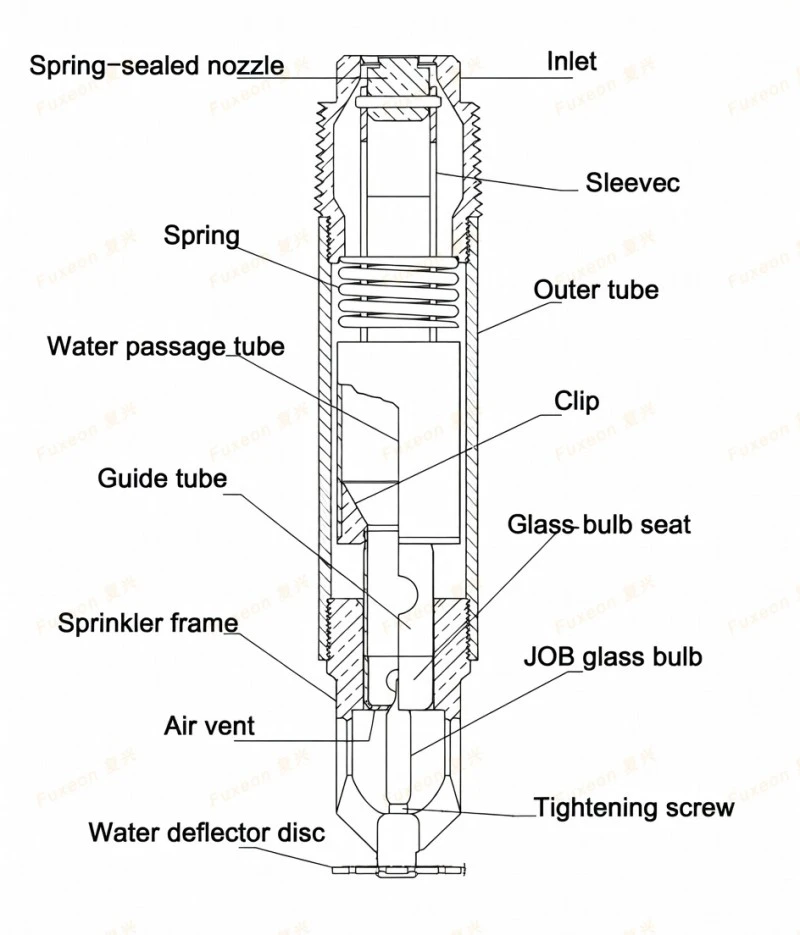

Under normal operation, the pipe plug (with an elastic sealing gasket) at the inlet of the dry sprinkler head connector blocks water flow, preventing water accumulation and freezing in the pipes. In the event of a fire, the sprinkler head's glass bulb ruptures, the internal compression spring extends, pushing the water pipe and pulling the sleeve to disengage the pipe plug, allowing water to enter the sprinkler head for fire control and extinguishing.

Installation Instructions

1. Threaded connections require PTFE tape or non-cured pipe thread connectors to ensure a tight seal.

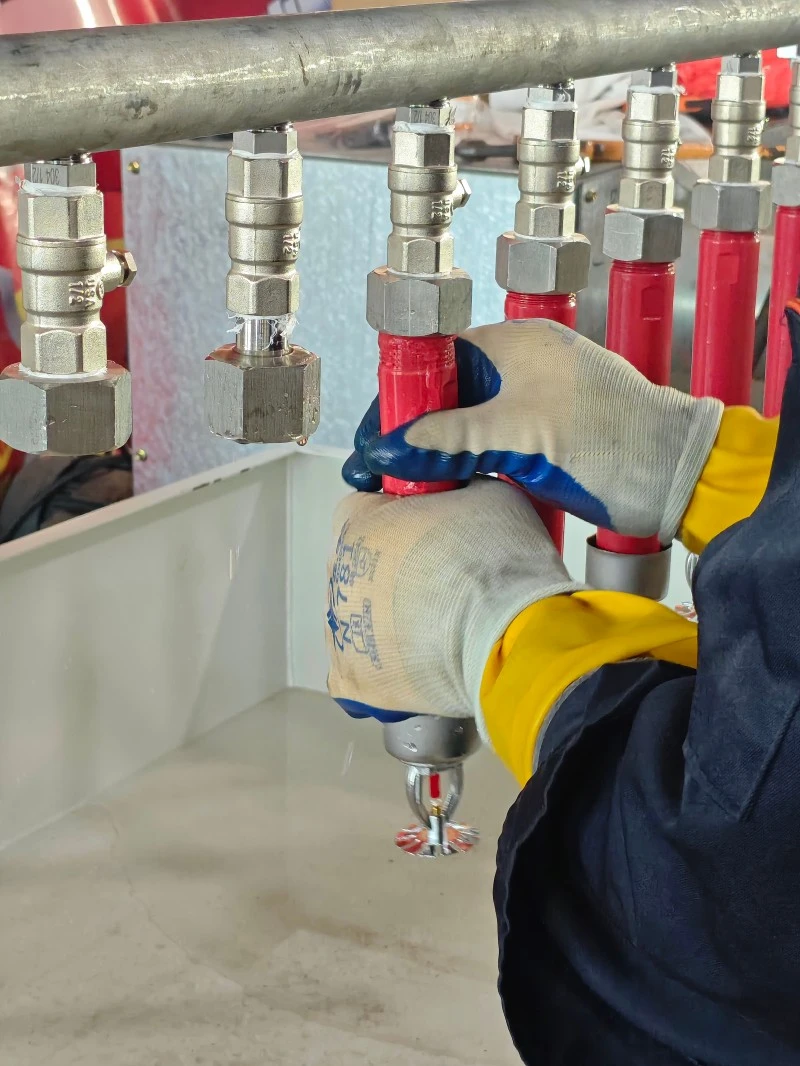

2. When installing a Dry Type Fire Sprinkler, use pipe wrenches to clamp the outer pipe of the sprinkler head. Do not directly clamp the sprinkler head body to avoid damage.

3. Control the tightening torque between 20-28 Nm. Do not exceed 30 Nm to prevent equipment damage.

FAQ

Q1: What are the key application scenarios?

It is suitable for unheated warehouses, cold storage, outdoor corridors, parking lots, factory workshops, northern low-temperature areas and all open or frost-prone spaces where wet sprinklers cannot work normally.

Q2: What are the advantages compared with wet type sprinklers?

It features freeze-proof and low-temperature resistance, no pipe freezing risk in winter. It has stable sealing, low water leakage risk, strong environmental adaptability and long service life in harsh cold conditions.

Q3: What temperature ratings and specifications are available?

Multiple temperature models are optional, such as 57℃, 68℃, 79℃ and 93℃. Standard pendent, upright and side wall types are supplied, with complete caliber sizes to match dry pipe fire protection systems.
