Glass Ball Fire Sprinkler

Fuxeon® is a Chinese manufacturer of glass ball fire sprinklers. We use brass as raw material and the glass bulbs are from the world-renowned JOB brand. Our fire sprinklers are high-quality, competitively priced, and fully certified. We also offer OEM services. If you require a custom fire sprinkler, please contact us.

Send Inquiry

Product Description

In China, the Glass Ball Fire Sprinkler manufactured by Fuxeon® is a key component of the automatic sprinkler fire suppression system. It is capable of detecting fires and controlling and extinguishing them through automatic water spraying. This series of products, all electroplated, consists of a frame, glass ball, sealing ring, sealing seat, screws, and a Water distributor plate. They are widely used to protect light- and medium-risk buildings, such as restaurants, hotels, shops, commercial buildings, warehouses, underground garages, and garment factories, as well as buildings with severe hazard levels.

Common Classification:

Brass Fire Sprinkler can be divided into Upright Type, Pendent Type, Horizontal SideWall Type according to the installation type. According to the flow classification, it can be divided into K5.6 standard Fire Sprinkler (K80), K8.0 standard fire sprinkler (K115), K11.2 standard fire sprinkler (K161). According to the size, it can be divided into DN15 (R1/2"), DN20 (R3/4"), DN25 (R1")

Technical Parameters

No.	Model Specifications	Nominal Diameter/ mm	Connection Thread/in	K Flow Coefficient	Action Component				Installation Type	Factory Water Pressure Test
					Specifications	Action Temperature	Color Code	Brand
1	T-ZSTZ 80-68℃ Q5	DN15	R1/2	80±4	φ5				Upright Type	3.0 Mpa Pressure Maintenance 3min
2	T-ZSTX 80-68℃ Q5					68℃	Red	CDGIX/ Job	Pendent Type
3	T-ZSTBS 80-68℃ Q5								Horizontal SideWall Type
4	T-ZSTZ 80-93℃ Q5					93℃	Green		Upright Type
5	T-ZSTX 80-93℃ Q5								Pendent Type
6	T-ZSTBS 80-93℃ Q5								Horizontal SideWall Type
7	T-ZSTZ 80-79℃ Q5					79℃	Yellow		Upright Type
8	T-ZSTX 80-79℃ Q5								Pendent Type
9	T-ZSTBS 80-79℃ Q5								Horizontal SideWall Type
10	K-ZSTZ 80-68℃ Q3				φ3	68℃	Red	Job	Upright Type
11	K-ZSTX 80-68℃ Q3								Pendent Type
12	K-ZSTBS 80-68℃ Q3								Horizontal SideWall Type
13	T-ZSTZ80-68℃ Q4.5 F				φ4.5	68℃	Red	Job	Upright Type
14	T-ZSTX80-68℃ Q4.5 F								Pendent Type
80	T-ZSTBS80-68℃ Q4.5 F								Horizontal SideWall Type
16	T-ZSTX80-141℃ Q4.5 F					141℃	Blue		Upright Type
17	T-ZSTX80-141℃ Q4.5 F								Pendent Type
18	T-ZSTZ 115-68℃ Q5	DN20	R3/4	115±6	φ5	68℃	Red	CDGIX	Upright Type
19	T-ZSTX 115-68℃ Q5								Pendent Type
20	T-ZSTBS 115-68℃ Q5								Horizontal SideWall Type
21	K-ZSTZ 115-68℃ Q3				φ3			Job	Upright Type
22	K-ZSTX 115-68℃ Q3
									Pendent Type
23	K-ZSTBS 115-68℃ Q3								Horizontal SideWall Type
24	T-ZSTZ161-68℃ Q5	DN20	R3/4	159-166	φ5	68℃	Red	CDGIX	Upright Type
25	T-ZSTX161-68℃ Q5								Pendent Type
26	T-ZSTZ161-93℃ Q5					93℃	Green		Upright Type
27	T-ZSTX161-93℃ Q5								Pendent Type
28	K-ZSTZ161-68℃ Q3				Φ3	68℃	Red	Job	Upright Type
29	K-ZSTX161-68℃ Q3								Pendent Type
30	ZSTZ 80-72℃ Y	DN15	R1/2	80±4	Thickness 1.5	72℃	/	Hai Tu	Upright Type
31	ZSTX 80-72℃ Y								Pendent Type
32	ZSTZ 115-72℃ Y	DN20	R3/4	115±6					Upright Type
33	ZSTX 115-72℃ Y								Pendent Type
34	EC-ZSTZ115-68℃ Q3	DN20	R3/4	115±6	φ3	68℃	Red	Job	Upright Type
35	EC-ZSTX115-68℃ Q3								Pendent Type
36	EC-ZSTBS115-68℃ Q3								Horizontal SideWall Type
37	T-ZSTGX 80-68℃ Q5	DN25	G1	80±4	φ5	68℃	Red	CDGIX	Pendent Type
38	K-ZSTGX 80-68℃ Q3				φ3			Job
39	T-ZSTGX 115-68℃ Q5			115±6	φ5			CDGIX
40	K-ZSTDQ80-68℃ Q3	DN15	G1/2	80±4	φ3	68℃	Red	Job	Flush Type
41	ZSTMB-T 80/170-68℃	DN15	R1/2	80±4	φ3	68℃	Red	Job	Sidewall Type

Quality Assurance:

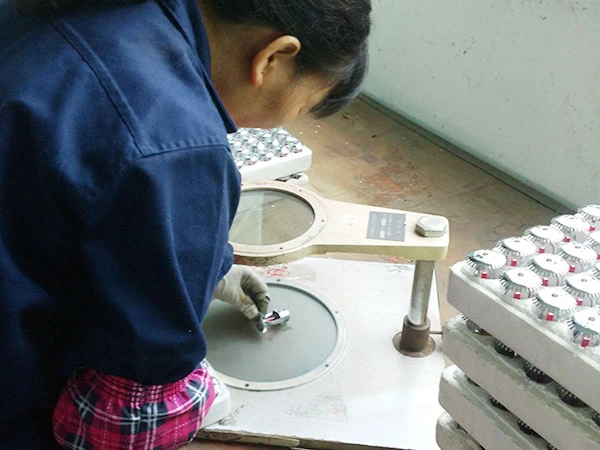

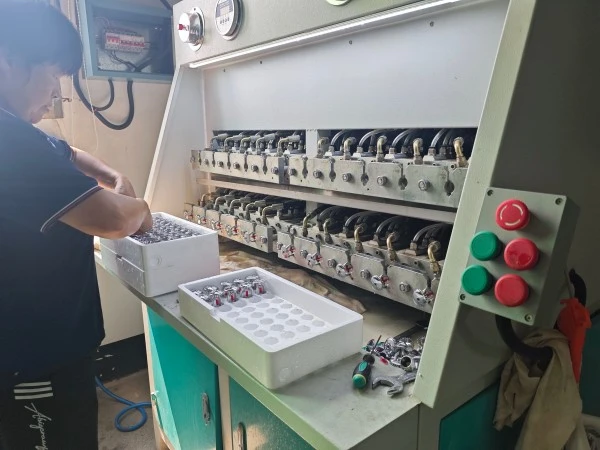

Each of our high-quality fire sprinklers undergoes a pressure test before sale, a crucial step many manufacturers omit. Furthermore, our rigorous quality control personnel thoroughly inspect each sprinkler. Each automatic fire sprinkler is labeled with a product number, corresponding to the manufacturer's number. Any quality issues will be the responsibility of our staff and quality control personnel. Therefore, we maintain strict quality control over our sprinkler heads.

Picture Display：

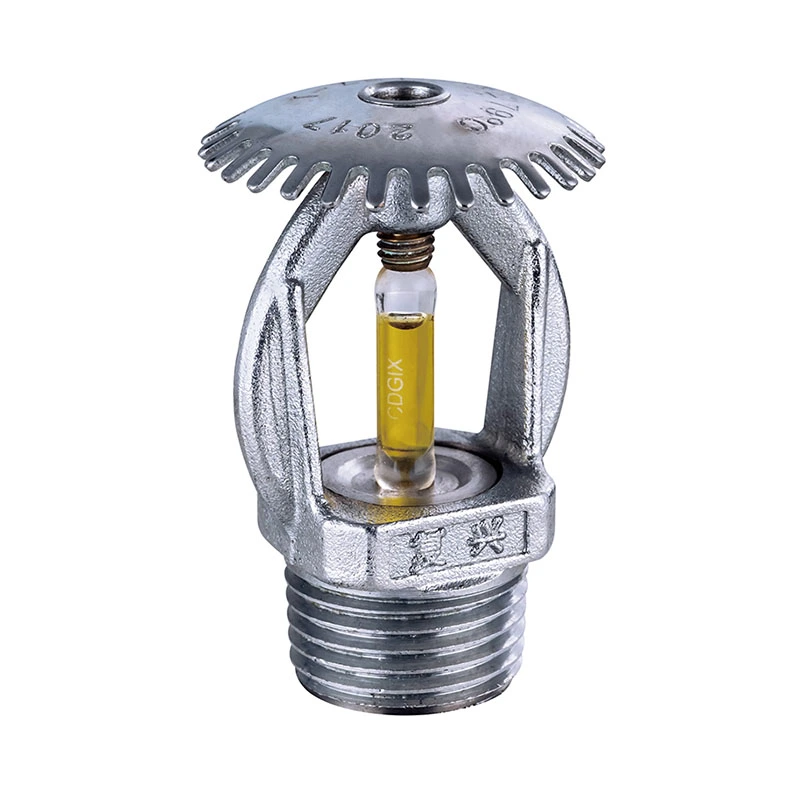

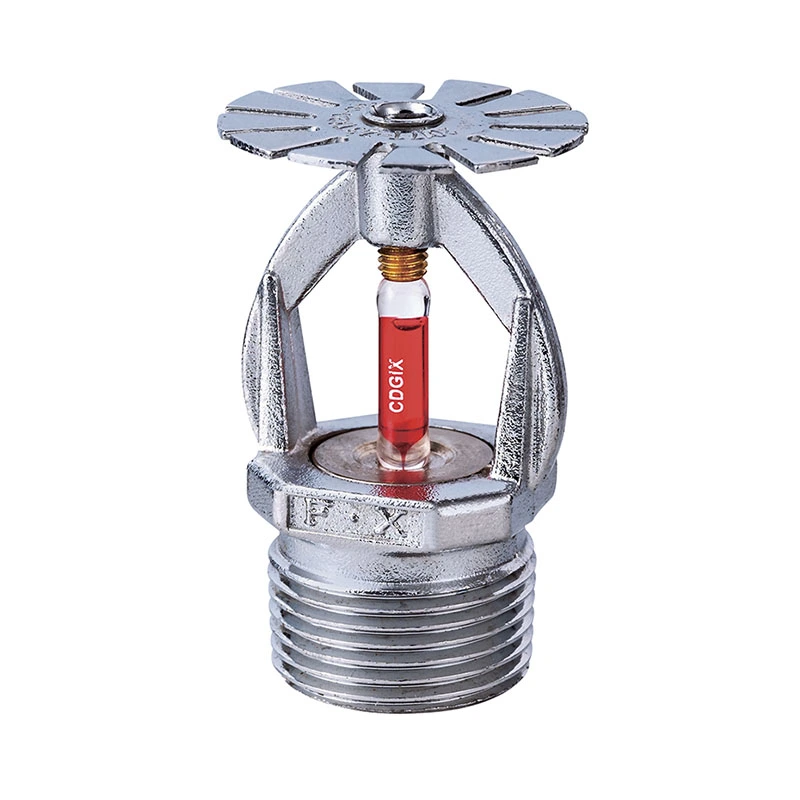

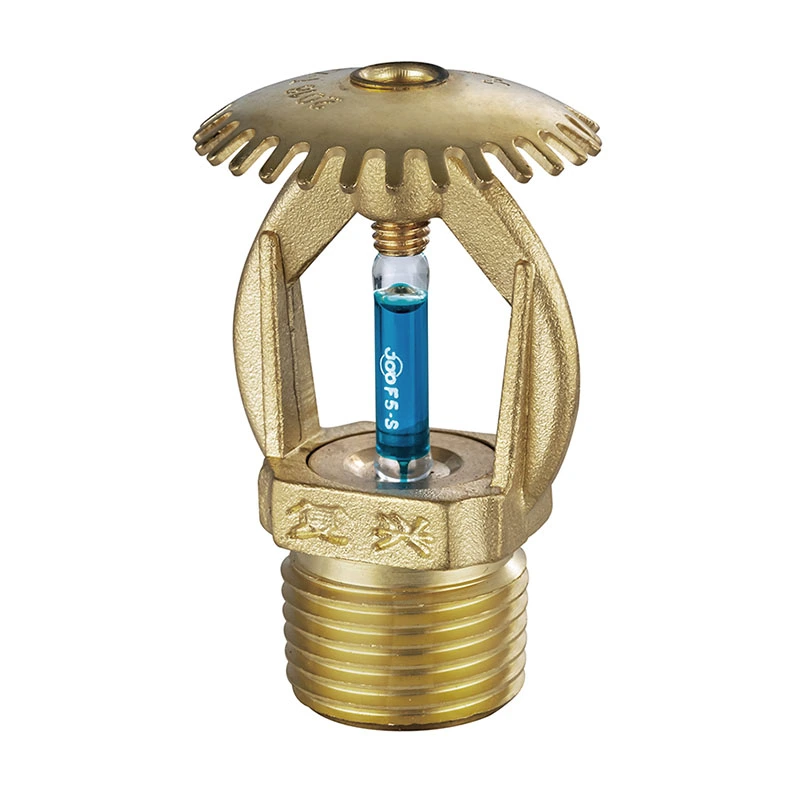

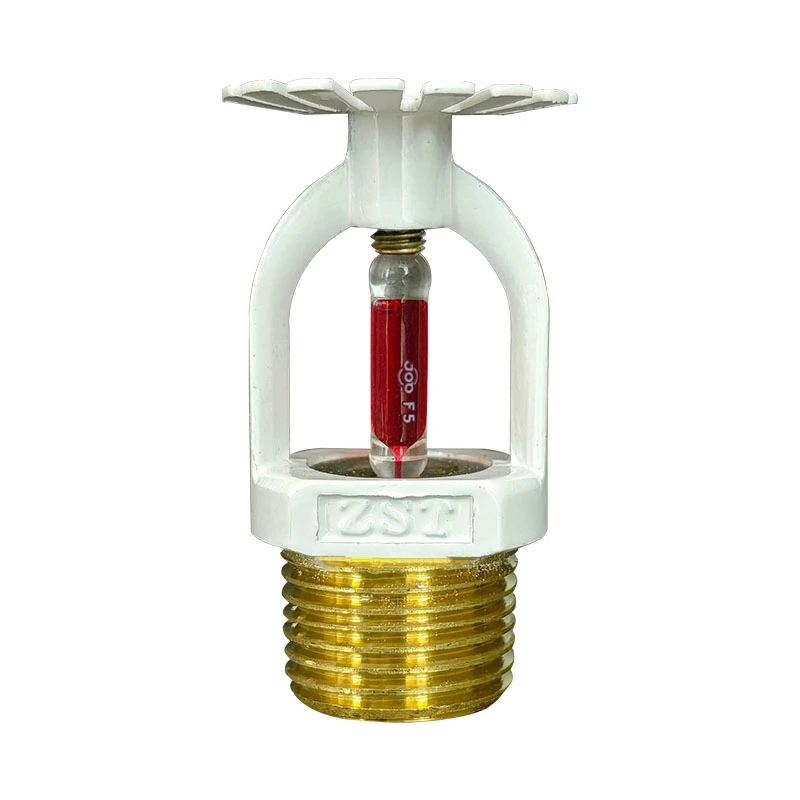

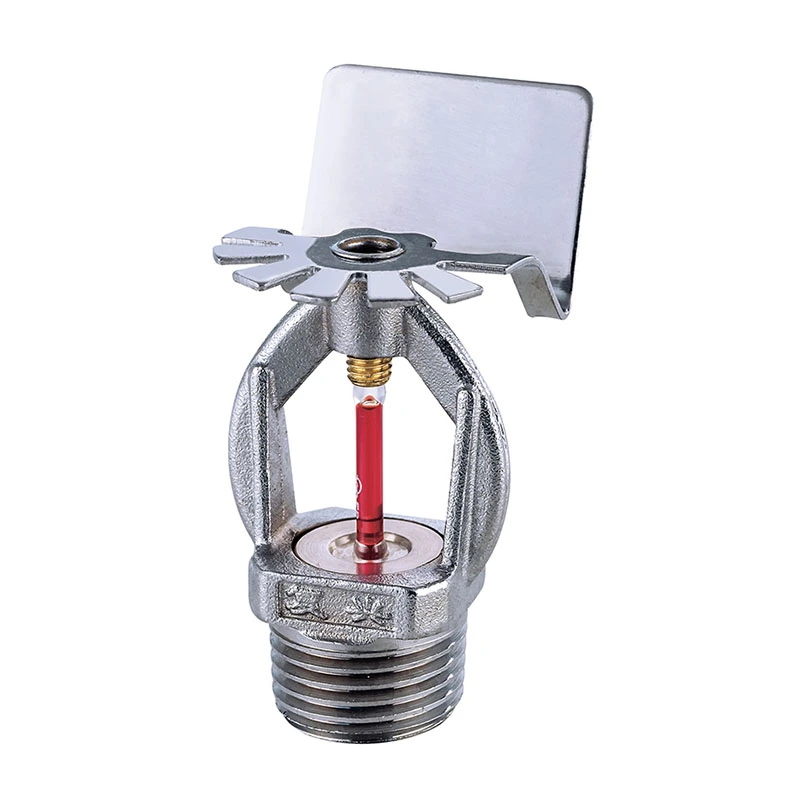

Glass Ball Fire Sprinkler

FAQ

Q1: How does the glass ball temperature sensing structure work?

The glass bulb holds special heat-sensitive liquid. When the ambient temperature reaches the rated temperature, the liquid expands sharply and breaks the glass ball. The pressure seal opens instantly, and pipeline water flows out for full coverage spraying to put out initial fires.

Q2: What are the material advantages for long-term daily use?

Brass housing provides great rust resistance, water corrosion resistance and pressure resistance. The high-strength glass ball has stable temperature sensing accuracy, not easy to age or damage in normal indoor environments. All materials are designed for 24-hour long-term standby with low failure rate.

Q3: What working conditions are not suitable for this Glass Ball Fire Sprinkler?

It is only applicable to clean fire water systems. Not suitable for strong corrosive gas, chemical liquid, ultra-high temperature workshops or outdoor exposed areas. Extreme vibration and heavy impact environments are also prohibited to prevent accidental breakage of the glass ball.
